NTMCGCWOEU Flexible High Voltage Cable for Switch-Gear Connections with Small Bending Radius – Durable Medium Voltage Mining Cable Solution

Introduction

Overview of the NTMCGCWOEU Cable Model

The NTMCGCWOEU cable represents a cutting-edge solution in the realm of flexible high voltage cables, specifically engineered to meet the demanding requirements of modern electrical installations. This medium voltage, screened single core cable adheres to the stringent DIN VDE 0250-813 standards, ensuring reliability and safety in critical applications. Designed with versatility in mind, the NTMCGCWOEU cable excels in environments where space constraints and flexibility requirements make traditional rigid cables impractical.

What sets this cable apart is its unique construction that combines exceptional flexibility with robust electrical performance. The cable's design philosophy centers around providing reliable power transmission in confined spaces while maintaining the electrical integrity required for medium voltage applications ranging from 3.6/6 kV to 18/30 kV systems.

Importance of Flexible High Voltage Cable for Short-Length Applications

In today's increasingly compact industrial installations, the need for flexible high voltage cables has become paramount. Traditional rigid cables often prove inadequate when dealing with tight bending radii requirements common in switch-gear assemblies and transformer houses. The NTMCGCWOEU cable addresses these challenges by offering superior flexibility without compromising on electrical performance or safety standards.

Short-length applications present unique challenges that require specialized cable solutions. These applications often involve complex routing through confined spaces, frequent vibrations, and the need for easy maintenance access. The flexible high voltage cable for switch-gear connections must withstand these demanding conditions while providing consistent electrical performance throughout its operational lifetime.

Key Features and Technical Specifications

Conductor and Insulation Materials

The NTMCGCWOEU cable features a sophisticated conductor design utilizing tinned copper wires that are finely stranded to class 5 specifications according to DIN EN/IEC 60228. This high-quality conductor construction ensures optimal current carrying capacity while maintaining the flexibility essential for small bending radius applications. The tinned copper construction provides excellent corrosion resistance, extending the cable's operational lifetime in challenging environments.

The insulation system represents a three-layer approach to electrical integrity. An inner semi-conductive stress control layer manages electrical field distribution, while the central EPR (Ethylene Propylene Rubber) compound provides primary insulation with improved electrical and mechanical characteristics based on DIN VDE 0207-20. The outer semi-conductive insulation shield layer completes the screening system, ensuring consistent electrical performance across all voltage ratings.

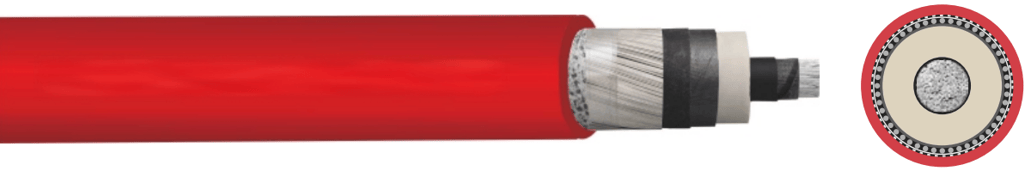

Screened Single Core Construction

The screened single core design of the NTMCGCWOEU cable is fundamental to its performance in medium voltage applications. This construction methodology provides superior electromagnetic compatibility while maintaining the flexibility required for tight installation spaces. The protective conductor consists of spirally applied tinned copper wires, designed according to DIN VDE 0250-1 specifications, ensuring reliable earth continuity throughout the cable's service life.

This screening technology is particularly crucial for small bending radius medium voltage mining cable applications, where electromagnetic interference could compromise both the cable's performance and surrounding equipment. The comprehensive screening system maintains signal integrity even when the cable is subjected to the mechanical stresses associated with frequent flexing.

Mechanical Parameters: Bending Radius and Tensile Load

One of the most significant advantages of the NTMCGCWOEU cable is its exceptional mechanical flexibility. For fixed installations, the minimum bending radius is just 6 times the outer diameter, while free-moving applications require only 10 times the outer diameter. This remarkable flexibility makes it ideal for high flexibility cable for transformer houses where space constraints are critical.

The cable's tensile strength is equally impressive, with a maximum permissible tensile load of 15 N/mm² per conductor. This robust construction ensures the cable can withstand the mechanical stresses encountered during installation and operation, particularly important in mining and industrial environments where cables may be subjected to significant mechanical stress.

Thermal and Electrical Ratings

The thermal performance of the NTMCGCWOEU cable is designed to accommodate a wide range of operating conditions. For fixed installations, the cable operates reliably in ambient temperatures ranging from -40°C to 80°C, while flexible operations are supported from -25°C to 80°C. The maximum permissible conductor temperature of 90°C ensures safe operation under full load conditions, while the short-circuit temperature rating of 200°C provides adequate safety margins for fault conditions.

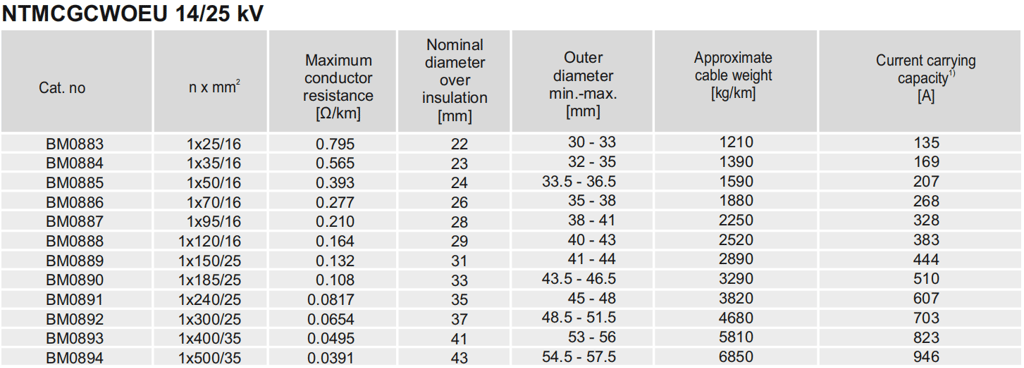

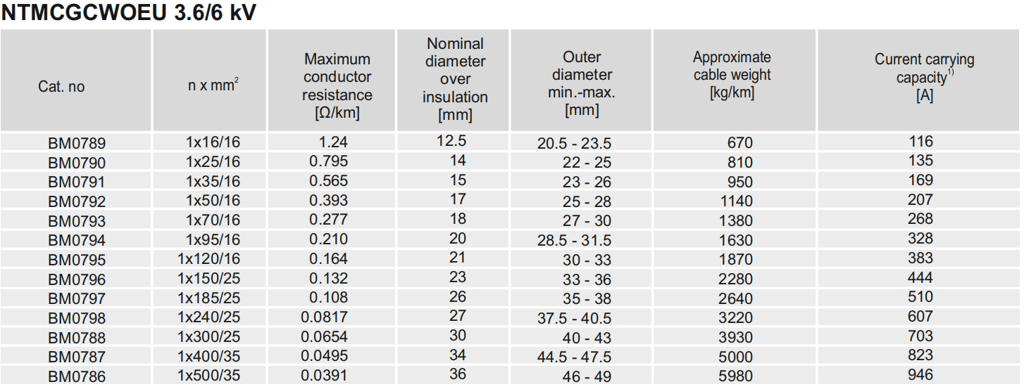

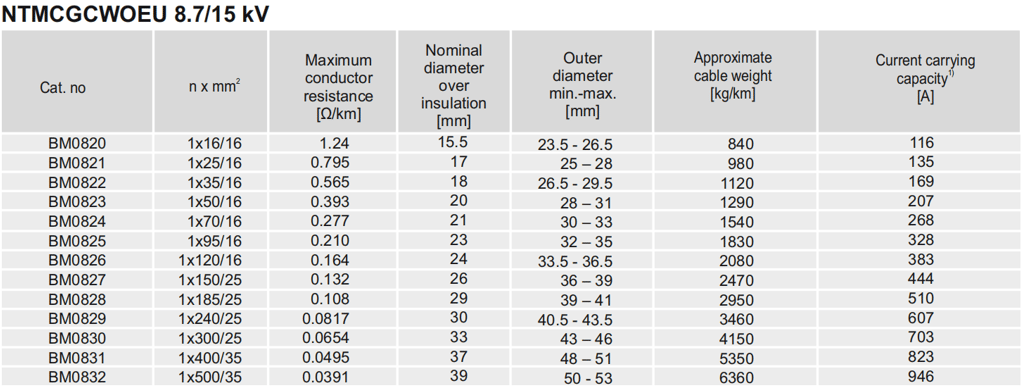

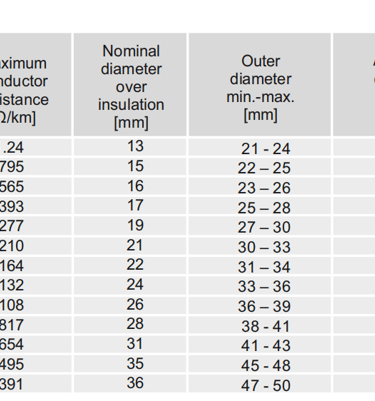

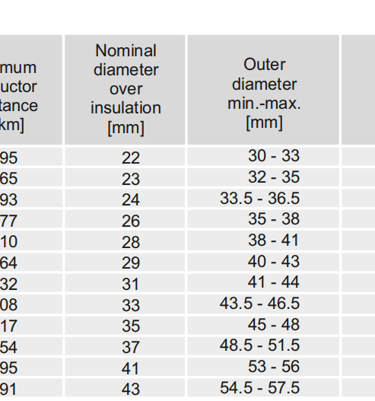

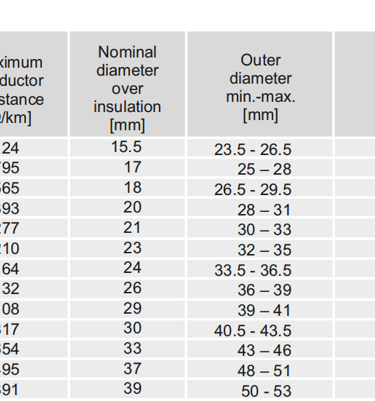

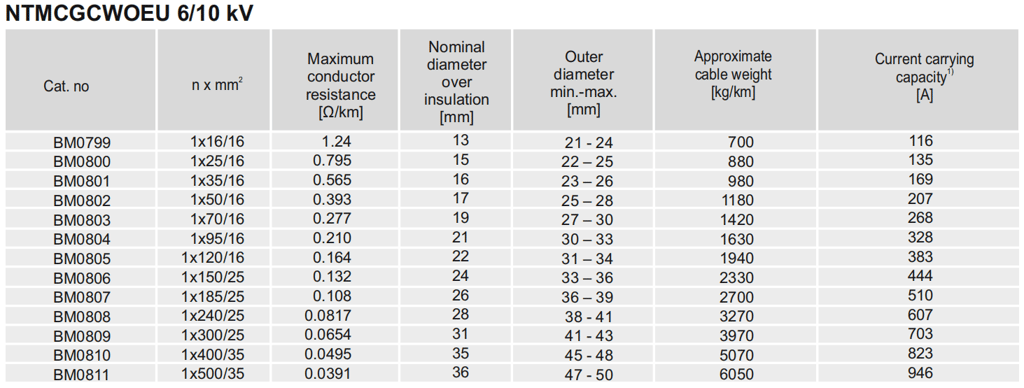

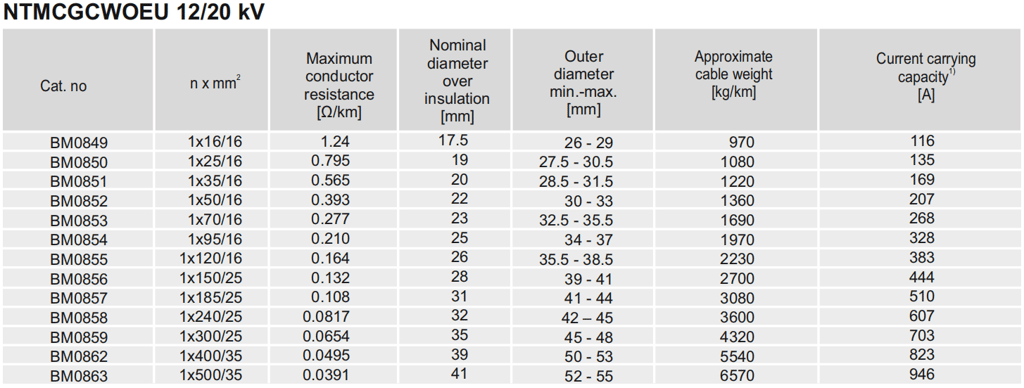

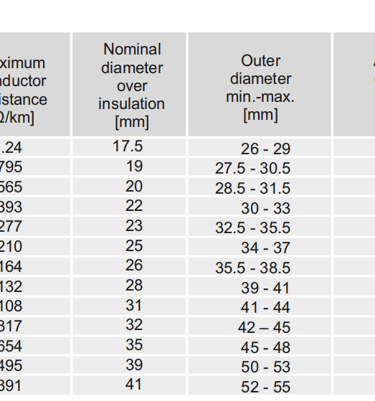

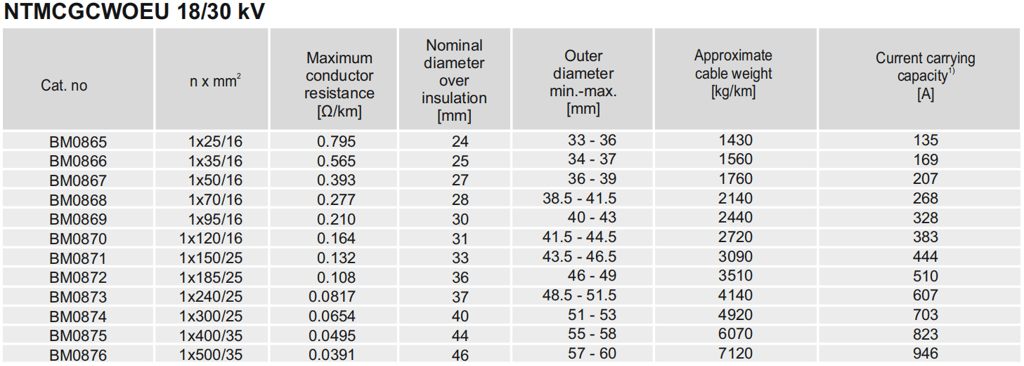

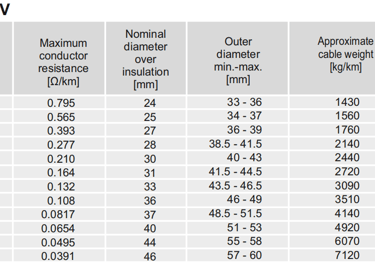

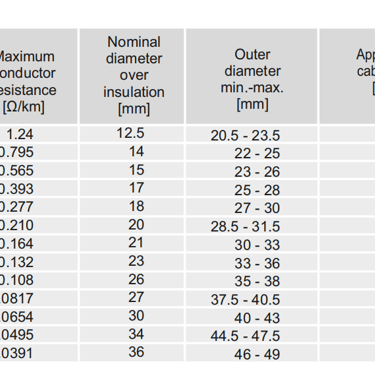

Electrical performance varies according to the specific voltage rating, with options ranging from 3.6/6 kV systems up to 18/30 kV applications. Current carrying capacities are optimized for each conductor size, with the largest 500mm² conductors capable of carrying up to 946 amperes under standard conditions, making these cables suitable for substantial power transmission requirements.

Environmental and Chemical Resistance

The NTMCGCWOEU cable's outer sheath utilizes a heavy-duty rubber compound (type 5GM5) according to DIN VDE 0207-21, providing exceptional resistance to environmental factors. This formulation offers unrestricted use both indoors and outdoors, with particular resistance to ozone, UV radiation, and moisture. The distinctive red coloring with inkjet marking ensures easy identification and traceability throughout the installation.

Chemical resistance is a critical feature for mining applications, with the cable demonstrating excellent oil resistance according to DIN EN/IEC 60811-404. The fire behavior performance meets DIN EN/IEC 60332-1-2 requirements, ensuring safe operation in industrial environments where fire safety is paramount.

Application Scenarios

Connection in Switch-Gear Assemblies

Switch-gear assemblies represent one of the most demanding applications for flexible high voltage cable for switch-gear connections. These installations require cables that can navigate tight spaces while maintaining electrical integrity under varying load conditions. The NTMCGCWOEU cable's small bending radius capability makes it ideal for connecting different sections of switch-gear where traditional cables would require excessive space or compromise installation aesthetics.

In modern switch-gear designs, space optimization is crucial, and the ability to route cables with minimal bending radius requirements allows for more compact installations. The cable's screening provides excellent electromagnetic compatibility, preventing interference between adjacent circuits and ensuring reliable operation of sensitive control and protection equipment.

Transformer House Interconnections

Transformer houses present unique challenges for cable installations, combining space constraints with high electrical performance requirements. The high flexibility cable for transformer houses must accommodate thermal expansion, vibration from transformer operation, and potentially corrosive atmospheric conditions. The NTMCGCWOEU cable's robust construction and environmental resistance make it particularly suitable for these applications.

The cable's ability to handle voltage levels up to 18/30 kV makes it suitable for distribution transformer connections, while its flexibility allows for easy routing around transformer mounting structures and cooling equipment. The oil resistance is particularly valuable in transformer environments where lubricants and coolants may be present.

Mining and Industrial Uses

Mining environments demand cables that can withstand harsh conditions while maintaining reliable electrical performance. The small bending radius medium voltage mining cable must resist not only environmental factors but also mechanical abuse from mining equipment and operations. The NTMCGCWOEU cable's robust construction, combined with its chemical and UV resistance, makes it particularly suitable for these challenging applications.

Industrial installations benefit from the cable's flexibility in routing through equipment assemblies and its ability to accommodate thermal cycling from varying loads. The cable's screening provides excellent protection against electromagnetic interference from industrial equipment, while its durability ensures long service life in demanding operating conditions.

Installation Guidelines

Fixed vs. Flexible Operation Temperature Ranges

Understanding the temperature limitations for different installation types is crucial for optimal cable performance. Fixed installations can operate across the full temperature range of -40°C to 80°C, making the cable suitable for outdoor installations in extreme climates. The broader temperature range for fixed installations reflects the reduced thermal stress when cables are not subject to frequent flexing.

Flexible operations are limited to -25°C to 80°C, which still provides excellent versatility for most industrial applications. This temperature range ensures that the cable's flexibility characteristics are maintained throughout its operational life, preventing premature failure due to thermal stress on the cable's flexible components.

Recommended Bending Radius Practices

Proper installation practices are essential for achieving the full performance potential of the NTMCGCWOEU cable. For fixed installations, maintaining a minimum bending radius of 6 times the outer diameter ensures that the cable's electrical and mechanical properties are preserved throughout its service life. This relatively small bending radius requirement provides significant advantages in confined installation spaces.

Free-moving applications require a minimum bending radius of 10 times the outer diameter, which still represents excellent flexibility compared to traditional medium voltage cables. When installing in applications involving frequent movement, proper support and strain relief measures should be implemented to prevent excessive stress on the cable and its connections.

Short-Length Cable Handling Tips

Short-length installations require particular attention to handling techniques to prevent damage during installation. The cable's flexibility should not be mistaken for reduced mechanical sensitivity, and proper lifting and support techniques should be employed throughout the installation process. Pre-installation planning should account for the cable's final routing to minimize unnecessary handling and potential stress points.

Storage of short-length sections should follow manufacturer guidelines, with particular attention to minimum bending radius requirements even during temporary storage. Proper cable pulling techniques, including the use of appropriate pulling grips and lubricants where necessary, ensure that the cable's performance characteristics are maintained during installation.

Performance Benefits

Enhanced Flexibility for Tight Spaces

The primary performance benefit of the NTMCGCWOEU cable lies in its exceptional flexibility, enabling installations that would be impossible with traditional rigid cables. This flexibility translates directly into cost savings through reduced installation complexity and the ability to utilize more direct routing paths. The small bending radius capability reduces the need for complex cable management systems and allows for more efficient use of available installation space.

In retrofit applications, the cable's flexibility often eliminates the need for structural modifications that would be required to accommodate rigid cables. This benefit is particularly significant in older facilities where installing new electrical infrastructure can be challenging and expensive.

Reliable Voltage Withstand in Medium Voltage Systems

Despite its flexibility, the NTMCGCWOEU cable maintains excellent electrical performance across its full voltage range. The sophisticated insulation system ensures reliable voltage withstand characteristics, while the screening system provides excellent protection against electrical interference. This combination of flexibility and electrical performance makes the cable suitable for critical power distribution applications where reliability is paramount.

The cable's voltage ratings from 3.6/6 kV up to 18/30 kV provide versatility for various medium voltage applications, while the robust insulation system ensures long-term reliability even under varying load conditions. The partial discharge performance and long-term electrical stability make the cable suitable for applications where electrical integrity is critical.

Durability Against UV, Ozone, Oil, and Moisture

Environmental resistance is a key performance advantage of the NTMCGCWOEU cable, particularly in industrial and mining applications. The cable's resistance to UV radiation ensures reliable performance in outdoor installations without degradation from solar exposure. Ozone resistance is particularly important in industrial environments where electrical equipment may generate ozone as a byproduct of operation.

Oil resistance is crucial for applications in transformer environments and industrial facilities where hydraulic fluids and lubricants may be present. The cable's moisture resistance ensures reliable operation in high-humidity environments and provides protection against water ingress that could compromise electrical performance.

Common Installation Questions and Troubleshooting

What are the key considerations when installing NTMCGCWOEU cables in switch-gear applications?

When installing flexible high voltage cable for switch-gear connections, several critical factors must be considered. First, ensure that the minimum bending radius requirements are strictly observed – 6 times the outer diameter for fixed installations and 10 times for flexible applications. Proper strain relief at termination points is essential to prevent stress concentration that could lead to premature failure.

Cable routing should minimize the number of bends while maintaining accessibility for maintenance. In switch-gear environments, electromagnetic compatibility is crucial, so ensure proper cable screening continuity and appropriate separation from control circuits. Temperature considerations are important, particularly in enclosed switch-gear where heat buildup can exceed normal ambient conditions.

How does the cable perform in high-vibration mining environments?

The small bending radius medium voltage mining cable is specifically designed to handle the challenging conditions found in mining operations. The cable's flexible construction and robust screening provide excellent resistance to vibration-induced stress, while the heavy-duty rubber outer sheath protects against mechanical damage from mining equipment.

In high-vibration environments, proper cable support is essential to prevent fatigue failure. Use appropriate cable clamps and supports at regular intervals, ensuring that the cable's natural flexibility is maintained while preventing excessive movement. The cable's oil resistance is particularly valuable in mining applications where hydraulic fluids are commonly used.

What maintenance practices ensure optimal cable performance?

Regular visual inspections should focus on the cable's outer sheath condition, looking for signs of mechanical damage, chemical attack, or UV degradation. Pay particular attention to areas where the cable experiences frequent flexing, as these locations are most susceptible to fatigue-related issues.

Electrical testing should include insulation resistance measurements and partial discharge testing where appropriate. Maintain detailed records of test results to track performance trends over time. In industrial environments, periodic cleaning of the cable surface helps maintain optimal heat dissipation and prevents contamination buildup that could affect performance.

How should installation teams handle voltage rating selection?

Selecting the appropriate voltage rating for the NTMCGCWOEU cable requires careful consideration of system voltage requirements and safety factors. The cable's voltage rating should exceed the system's maximum operating voltage by appropriate safety margins as defined by relevant electrical codes and standards.

For systems operating at 6 kV, the 8.7/15 kV rated cable provides excellent safety margins, while 11 kV systems should utilize the 12/20 kV or higher rated versions. Consider future system expansion requirements when selecting voltage ratings, as upgrading cable installations can be costly and disruptive to operations.

Industry Applications and Market Positioning

The NTMCGCWOEU cable represents the pinnacle of flexible high voltage cable technology, specifically designed for applications requiring small bending radius capabilities. This innovative cable solution addresses the growing need for flexible high voltage cable for switch-gear connections while maintaining the electrical integrity required for medium voltage power distribution systems.

For organizations seeking a small bending radius medium voltage mining cable, the NTMCGCWOEU offers unparalleled performance in challenging industrial environments. The cable's unique construction makes it an ideal high flexibility cable for transformer houses where space constraints and environmental conditions demand superior cable performance.

The integration of advanced materials and construction techniques ensures that this flexible high voltage cable meets the most demanding application requirements while providing long-term reliability and cost-effective operation. Whether used in mining operations, industrial facilities, or commercial installations, the NTMCGCWOEU cable delivers consistent performance across its full range of operating conditions.

Conclusion

Summary of Advantages

The NTMCGCWOEU flexible high voltage cable represents a significant advancement in medium voltage cable technology, offering a unique combination of electrical performance and mechanical flexibility. Its ability to operate with minimal bending radius requirements makes it an ideal solution for space-constrained installations, while its robust construction ensures reliable operation in demanding industrial environments.

Key advantages include exceptional flexibility with bending radius requirements as low as 6 times the outer diameter, comprehensive environmental resistance including UV, ozone, oil, and moisture protection, and voltage ratings suitable for a wide range of medium voltage applications. The cable's construction quality, adherence to international standards, and proven performance in challenging applications make it a preferred choice for critical power distribution systems.

Why NTMCGCWOEU is Ideal for Short-Length, High-Flex Applications

The NTMCGCWOEU cable's design philosophy specifically addresses the challenges associated with short-length, high-flexibility applications. Its construction optimizes the balance between electrical performance and mechanical flexibility, ensuring reliable operation even under frequent flexing conditions. The cable's screening system maintains electromagnetic compatibility while its robust outer sheath provides protection against environmental and mechanical stresses.

For applications requiring flexible high voltage cable for switch-gear connections, transformer house installations, or mining operations, the NTMCGCWOEU cable offers unmatched performance and reliability. Its small bending radius capability, combined with excellent electrical characteristics and environmental resistance, makes it the optimal choice for modern electrical installations where flexibility and performance are equally important.

The investment in NTMCGCWOEU cable technology provides long-term value through reduced installation costs, improved system reliability, and extended service life. As electrical systems become increasingly compact and complex, the need for flexible, high-performance cable solutions will continue to grow, making the NTMCGCWOEU cable an essential component for future electrical infrastructure development.
