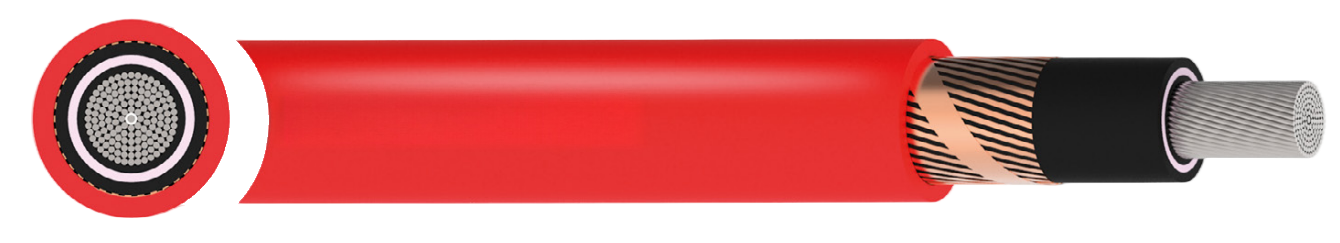

(N)TMCGEWÖU Heavy Duty Mining Cable (12/20kV to 18/30kV)
Single core high voltage cable for transformer connections and conveyor systems
$15.00
APPLICATION Medium voltage rubber sheathed flexible cable, single-core, normally used for short-length connections of transformers and switchgears, as well as power cables on mining equipment and alongside conveyor belts. Suitable for indoor and outdoor applications. |
CHARACTERISTICS Voltage Rating Uo/U 12/20V 14/25kV 18/30kV Test Voltage 12/20kV: 29kV 14/25kV: 36kV 18/30kV: 43kV Ambient Temperature Fixed: -40°C to +80°C Maximum Short Circuit Temperature +250°C Minimum Bending Radius Fixed: 6 x overall diameter |
CONSTRUCTION
Phase Conductor
Class 5 flexible stranded tinned copper
Insulation
Rubber compound Type 3GI3
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
Earth Conductor
Copper wire screen
Outer Sheath
Rubber compound Type 5GM5
Sheath Colour
● Red
STANDARDS
VDE 0250 Part 812, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
