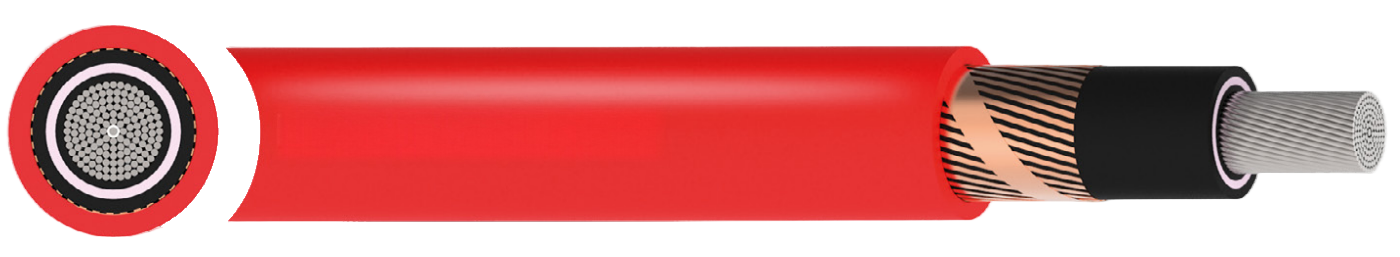

(N)TMCGEWÖU Single Core MV Cable (3.6/6kV, 6/10kV & 8.7/15kV)
Rubber sheathed flexible cable for transformers, switchgear and mining equipment
$25.00
APPLICATION Medium voltage rubber sheathed flexible cable, single core,normally used for short-length connections of transformers and switchgears, as well as power cables on mining equipment and alongside conveyor belts. Suitable for indoor and outdoor applications. |
CHARACTERISTICS Voltage Rating (Uo/U) 3.6/6kV 6/10kV 8.7/15kV Test Voltage 3.6/6kV: 11kV, 8.7/15kV 6/10kV: 17kV 8.7/15kV: 24kV Ambient Temperature Fixed: -40°C to +80°C Maximum Short Circuit Temperature +250°C Minimum Bending Radius Fixed: 6 x overall diameter |
CONSTRUCTION
Phase Conductor
Class 5 flexible stranded tinned copper
Insulation
Rubber compound Type 3GI3
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
Earth Conductor
Copper wire screen
Outer Sheath
Rubber compound Type 5GM5
Sheath Colour
● Red
STANDARDS
VDE 0250 Part 812, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
