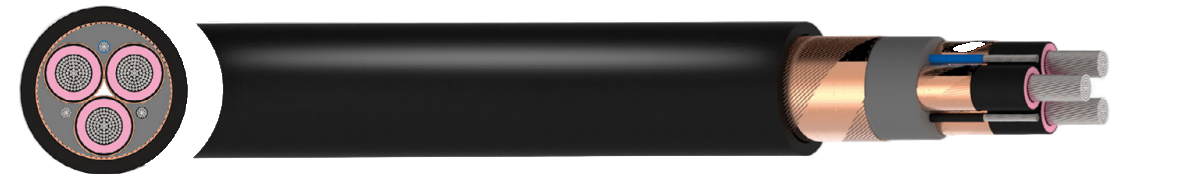

(N)TSCGECECWÖU High Voltage Tunnel Cable (8.7/15kV & 12/20kV)
Halogen-free flexible cable for TBM reeling drums and tunnel applications
$150.00
APPLICATION Flexible cable suitable for reeling drums of tunnel boring machines and generally for tunnel applications. Suitable for indoor and outdoor applications. Halogen free sheathed version. |
CHARACTERISTICS Voltage Rating Uo/U 8.7/15kV 12/20kV Test Voltage 8.7/15kV: 24kV 12/20kV: 29kV Ambient Temperature Fixed: -50°C to +80°C Flexed: -25°C to +80°C Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 10 x overall diameter |
CONSTRUCTION
Phase Conductor
Class 5 tinned copper conductor
Insulation
Rubber compound
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
Protective Earth Conductor
Individual copper wire screen
Control Conductor
Class 5 tinned copper conductor
Central Filler
Semi-conductive compound on a textile polyester support
Inner Sheath
Halogen-free compound
Monitoring Conductor
Copper wire screen over the inner sheath
Outer Sheath
Halogen-free PUR (Polyurethane)
Sheath Colour
● Black
STANDARDS
VDE 0250 Part 812, VDE 0295, EN 60228,
Flame Retardant according to IEC/EN 60332-1-2
Halogen Free according to IEC/EN 60754-1/2
