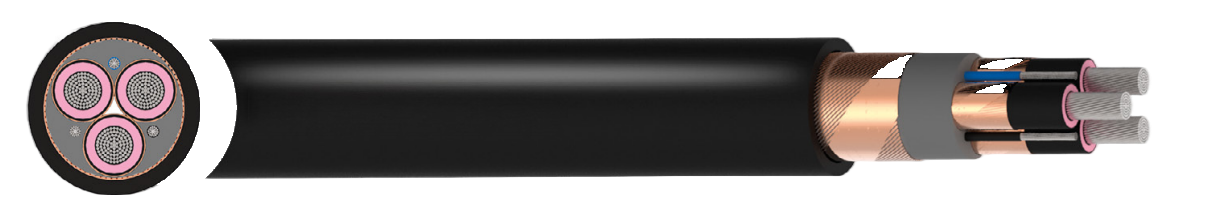

(N)TSCGECECWÖU Tunnel Boring Cable (3.6/6kV & 6/10kV)
Halogen-free flexible cable for TBM reeling drums and tunnel applications
$60.00
APPLICATION Flexible cable suitable for reeling drums of tunnel boring machines and generally for tunnel applications. Suitable for indoor and outdoor applications. Halogen-free sheathed version. |
CHARACTERISTICS Voltage Rating Uo/U 3.6/6kV 6/10kV Test Voltage 3.6/6kV: 11kV 6/10kV: 17kV Maximum Short Circuit Temperature +250°C Ambient Temperature Fixed: -50°C to +80°C Flexed: -25°C to +80°C Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 10 x overall diameter Maximum Torsional Stress ±25°/m |
CONSTRUCTION
Phase Conductor
Class 5 tinned copper conductor
Insulation
Rubber compound Type 3GI3
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
Protective Earth Conductor
Individual copper wire screen
Control Conductor
Class 5 tinned copper conductor
Central Filler
Semi-conductive compound on a textile polyester support
Inner Sheath
Halogen-free compound
Monitoring Conductor
Copper wire screen over the inner sheath
Outer Sheath
Halogen-free PUR (Polyurethane)
Sheath Colour
● Black
STANDARDS
VDE 0250 Part 812, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
Halogen Free according to IEC/EN 60754-1/2
