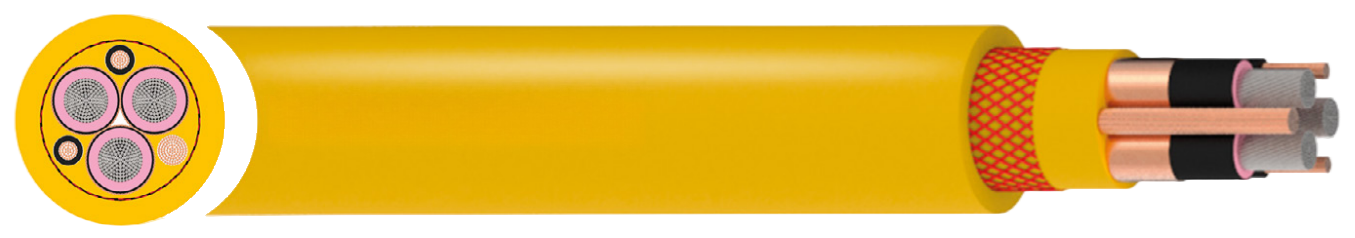

(N)TSCGECEWÖU 1.8/3kV – 6/10kV ATB Cable with Ground Check Conductor
Durable flexible trailing cable for heavy mining equipment, built to withstand extreme stress and abrasion in opencast operations.
$15.00
APPLICATION Flexible cable for the energy supply to heavy mobile equipment such as drag lines, shovels, dredges and drills, under extreme mechanical stresses and abrasion during trailing operation in opencast mines. Special construction with additional ground check conductor. Suitable for indoor and outdoor applications. |
CHARACTERISTICS Voltage Rating Uo/U 1.8/3kV | 3.6/6kV | 6/10kV Test Voltage 1.8/3kV: 6kV | 3.6/6kV: 11kV | 6/10kV: 17kV Ambient Temperature Fixed: -40ºC to +80°C; Flexed: -25°C to +80°C Maximum Short Circuit Temperature +250°C Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 10 x overall diameter |
CONSTRUCTION
Phase Conductor
Class 5 tinned copper conductor
Insulation
Rubber compound Type 3GI3
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation from 3.6/6kV
Earth Conductor
Individual copper braid
2 x copper earth conductors
1 x copper checking earth wiring conductor
Central Filler
Rubber compound on a textile polyester support
Inner Sheath
Abrasion resistant rubber compound
Anti-Torsion Braid
Polyester braid between the inner and outer sheath
Outer Sheath
Abrasion resistant rubber compound
Sheath Colour
● Yellow

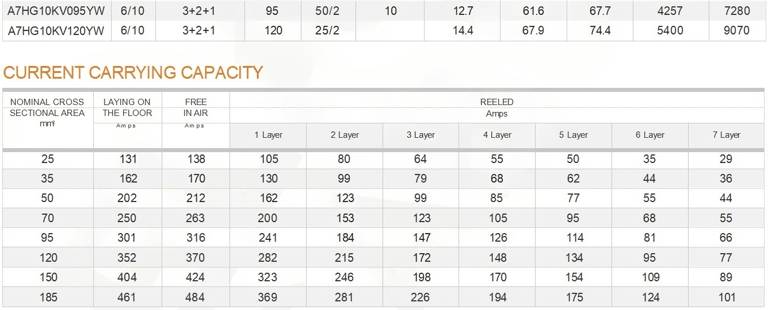

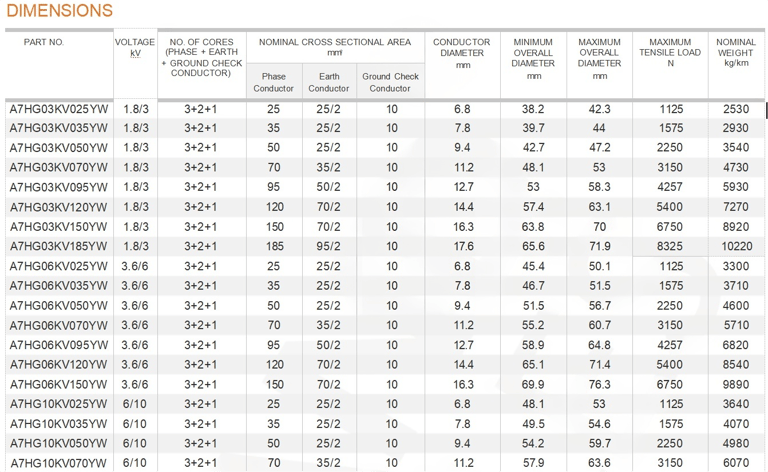

STANDARDS
VDE 0250 Part 813, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
