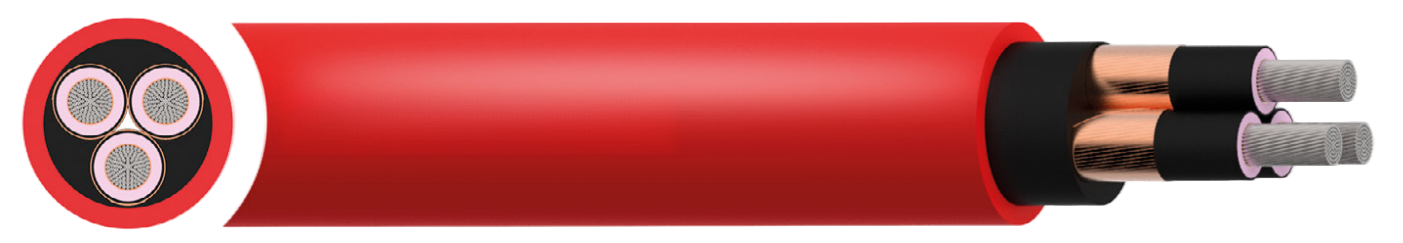

NTSCGECEWÖU 3.6/6kV & 6/10kV Mining Cable
Flexible distribution cable for mines and material handling systems, suitable for reliable indoor and outdoor power supply.
$120.00
APPLICATION Flexible cable for fixed energy distribution in mines and alongside material handling equipment. Suitable for indoor and outdoor applications. |
CHARACTERISTICS Voltage Rating (Uo/U) 3.6/6kV; 6/10kV Test Voltage 3.6/6kV: 11kV; 6/10kV: 17kV Ambient Temperature Fixed: -40ºC to +80°C Maximum Short Circuit Temperature +250°C Minimum Bending Radius Fixed: 6 x overall diameter |
CONSTRUCTION
Phase Conductor
Class 5 tinned copper conductor
Insulation
Rubber compound Type 3GI3
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
Protective Earth Conductor
Individual copper wire braid
Central Filler
Rubber compound on a textile polyester support
Inner Sheath
Rubber compound Type GM1b
Outer Sheath
Rubber compound Type 5GM3
Sheath Colour
● Red
CABLE THIRD-PARTY ACCREDITATION
VDE APPROVED - Cables are tested and approved by the VDE Testing & Certification Institute.
STANDARDS
VDE 0250 Part 813, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
