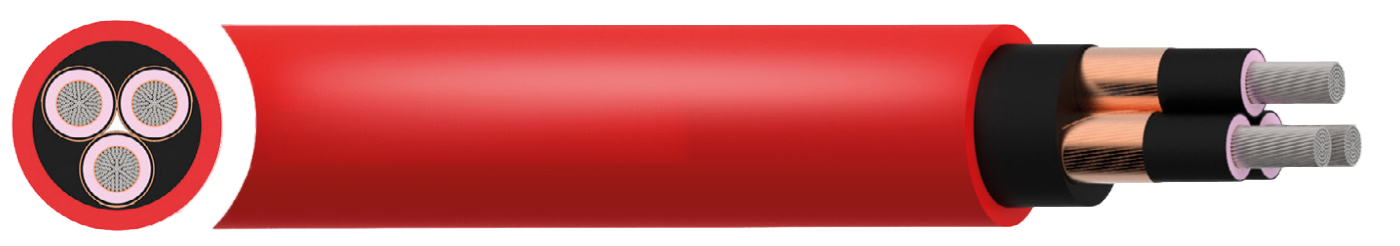

NTSCGECEWÖU 8.7/15kV & 12/20kV Mining Cable
Robust flexible cable for fixed energy distribution in mines and material handling equipment, ideal for both indoor and outdoor use.
$25.00
APPLICATION Flexible cable for fixed energy distribution in mines and alongside material handling equipment. Suitable for indoor and outdoor applications. |
CHARACTERISTICS Voltage Rating Uo/U 8.7/15kV 12/20kV Test Voltage 8.7/15kV: 24kV 12/20kV: 29kV Ambient Temperature Fixed: -40ºC to +80°C Maximum Short Circuit Temperature +250°C Minimum Bending Radius Fixed: 6 x overall diameter |
CONSTRUCTION
Phase Conductor
Class 5 tinned copper conductor
Insulation
Rubber compound
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner
and outer semi-conductive rubber layer on the insulation
Protective Earth Conductor
Individual copper wire braid
Central Filler
Rubber compound on a textile polyester support
Inner Sheath
Rubber compound
Outer Sheath
Rubber compound
Sheath Colour
● Red
CABLE THIRD-PARTY ACCREDITATION
VDE APPROVED - Cables are tested and approved by the VDE Testing & Certification Institute.
STANDARDS
VDE 0250 Part 813, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
