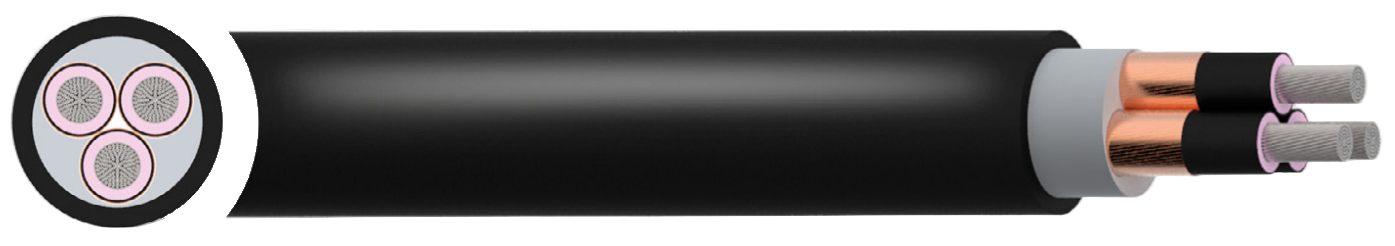

(N)TSCGECEWÖU 8.7/15kV & 12/20kV Submersible Cable
Flexible high-voltage cable for pumps, dredgers, floating docks, and mining equipment, engineered for continuous immersion up to 300m under severe mechanical stress.
$15.00
APPLICATION Flexible supply cable for use in permanent immersion in salty and brackish water up to 300 metres under high mechanical stresses used in applications such as pumps, dredges and floating docks. It is suitlable for trailing operations of opencast mining equipment. Suitable for indoor and outdoor applications. |
CHARACTERISTICS Voltage Rating Uo/U 8.7/15kV 12/20kV Test Voltage 8.7/15kV: 24kV 12/20kV: 29kV Ambient Temperature Fixed: -40ºC to +80°C; Flexed: -25°C to +60°C Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 10 x overall diameter Submersible 300mtr |
CONSTRUCTION
Phase Conductor
Class 5 tinned copper conductor
Insulation
Rubber compound
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner
and outer semi-conductive rubber layer on the insulation
Protective Earth Conductor
Individual copper wire braid
Central Filler
Rubber compound on a textile polyester support
Inner Sheath
EPR rubber compund with water proofing
Outer Sheath
CM rubber compound water proofing
Sheath Colour
● Black
STANDARDS
VDE 0250 Part 813, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
