(N)TSCGEWOEU-R Flexible EPR Power Supply Cable for Open-Pit Mining – High-Stress Reeling Cable Solution (3.6/30kV)

Introduction

Modern strip and open-pit mining operations demand robust, reliable power transmission solutions capable of withstanding extreme environmental conditions and mechanical stresses. The (N)TSCGEWOEU-R flexible power supply cable represents a cutting-edge solution specifically engineered for these challenging applications, providing uncompromised performance in the most demanding mining environments.

This flexible EPR power cable is specifically designed for connection of large material handling machines including excavators, dumpers, and mobile crushers. With its primary application focused on operation with cable reels, this mining cable delivers exceptional performance across voltage ratings from 3.6/6kV to 18/30kV, making it an ideal choice for medium-voltage power distribution in mining facilities.

The cable's sophisticated construction incorporates advanced materials and design principles to address the unique challenges faced in mining applications. From the high-mechanical-stress reeling cable requirements of mobile equipment to the environmental hazards present in open-pit operations, this cable system provides comprehensive protection whilst maintaining operational flexibility and reliability.

Key applications include flexible connections for mining equipment, drag chain installations, and specialised reeling applications where traditional power cables would fail due to the extreme mechanical demands. The cable's certification under EN 50575 (CPR) ensures compliance with contemporary fire safety regulations, whilst its robust construction delivers the durability required for continuous operation in harsh mining environments.

Technical Specifications and Performance Parameters

Operating Temperature and Mechanical Limits

The (N)TSCGEWOEU-R mining cable exhibits exceptional temperature tolerance across diverse installation scenarios. For fixed installations, the cable operates reliably across a temperature range of -40°C to 90°C, whilst flexible connections maintain performance integrity from -25°C to 80°C. This broad temperature range ensures consistent performance across seasonal variations and diverse geographical locations where mining operations occur.

The conductor's maximum permissible operating temperature reaches 90°C under normal conditions, with short-circuit performance maintaining structural integrity up to 250°C. These specifications ensure the cable can handle both routine operational loads and emergency conditions without compromising safety or performance.

Mechanical performance parameters are equally impressive, with the cable engineered to withstand tensile loads of 20N/mm² and torsional stresses of ±100°/m. These specifications are critical for reeling applications where the cable experiences continuous mechanical stress during equipment operation and repositioning.

The minimum bending radius follows DIN VDE 0298, Part 3 specifications, whilst S-type directional changes require a minimum distance of 20×D (where D represents cable diameter). These parameters ensure the cable maintains its structural integrity and electrical performance even under extreme flexing conditions commonly encountered in mining applications.

Travel Speed Performance and Dynamic Capabilities

One of the most remarkable features of this flexible EPR power cable for mining reels is its exceptional dynamic performance. During operational conditions, the cable can handle travel speeds up to 60m/min, making it suitable for high-productivity mining equipment that requires rapid repositioning and continuous operation.

For rewinding operations, the cable demonstrates even greater capability, supporting speeds up to 180m/min. This rapid rewinding capability minimises downtime during equipment repositioning and maintenance operations, contributing to overall operational efficiency in mining environments.

These speed capabilities are achieved through the cable's sophisticated anti-torsion reinforcement system and advanced sheath materials, which work together to prevent mechanical failure under dynamic loading conditions.

Standards Compliance and Certification Framework

The cable's design is based on DIN VDE 0250 p.813 standards, ensuring compliance with rigorous German engineering specifications for medium-voltage power cables. Additionally, cables are classified according to EN 50575 (CPR), meeting contemporary European construction product regulations for fire safety.

Operating voltage ranges from U₀/U = 3.6/6kV to 18/30kV, with corresponding test voltages ranging from 11kV to 43kV. This broad voltage range accommodates diverse mining equipment requirements whilst maintaining consistent performance characteristics across all voltage ratings.

Advanced Construction and Material Engineering

Conductors and Insulation Systems

The cable employs bare copper conductors with Class 6 stranding according to EN 60228 and DIN VDE 0295 specifications. This very fine stranding provides exceptional flexibility whilst maintaining excellent electrical conductivity, crucial for mining applications where the cable experiences continuous flexing.

The insulation system utilises an EPR compound with improved electrical and mechanical characteristics, conforming to DIN VDE 0207, Part 20. This advanced insulation material provides superior performance under mechanical stress whilst maintaining excellent electrical properties across the cable's operating temperature range.

Electrical field control is achieved through inner and outer layers of semiconductive rubber, ensuring uniform electric field distribution and preventing localised stress concentrations that could lead to premature failure in high-voltage applications.

Core Identification and Configuration

Core identification employs natural colouring with black semiconductive rubber and printed white digits 1 to 3, providing clear identification even in challenging lighting conditions common in mining environments. The core arrangement features three main conductors laid-up with a protective-earth conductor split into three sections positioned in the outer interstices, optimising both electrical performance and mechanical protection.

Advanced Sheath Systems and Protection

The cable's protective system incorporates multiple layers designed to address specific environmental and mechanical challenges. The inner sheath utilises special EPR compound according to DIN VDE 0207, Part 21, providing additional mechanical protection and environmental resistance.

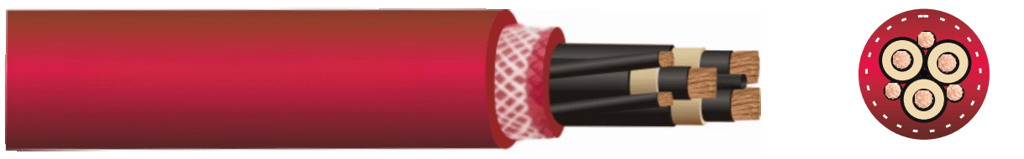

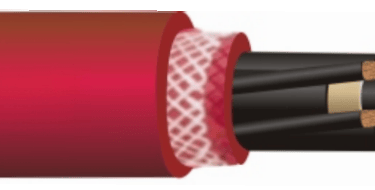

A critical feature is the anti-torsion reinforcement consisting of polyamide thread braid vulcanised between inner and outer sheaths. This reinforcement system is integral to the outer sheath construction, providing comprehensive protection from both transverse and longitudinal stress, essential for reeling applications.

The outer sheath employs 5GM5 compound with improved mechanical characteristics, also conforming to DIN VDE 0207, Part 21. This waterproof sheath, finished in distinctive red colour, provides the final barrier against environmental contamination whilst maintaining flexibility under mechanical stress.

Environmental Resistance and Durability Features

Comprehensive Environmental Protection

The UV- and oil-resistant mining power cable incorporates multiple resistance properties essential for mining environments. Oil resistance meets EN 60811-2-1 and IEC 60811-2-1 standards, crucial for operations where hydraulic fluids and lubricants are prevalent.

Fire behaviour compliance with VDE 0482 Part 332-1-2, EN 60332-1-2, and IEC 60332-1-2 ensures the cable maintains structural integrity during fire incidents, critical for underground and confined mining operations.

Weather resistance includes unrestricted indoor and outdoor use, with specific resistance to ozone, UV radiation, and moisture. The cable's oxygen index exceeds 29, indicating superior flame retardance properties that enhance safety in mining environments.

Chemical and Mechanical Durability

The cable's construction provides exceptional resistance to chemical contamination common in mining operations. The 5GM5 outer sheath compound offers enhanced resistance to acids, alkalis, and other chemical contaminants whilst maintaining flexibility and mechanical integrity.

Mechanical resistance extends beyond basic tensile and torsional capabilities to include resistance to abrasion, impact, and crushing forces encountered during equipment operation and cable handling in mining environments.

Installation Methodologies and Application Scenarios

Flexible Connection Applications

The cable's design optimises performance in flexible connection applications where traditional rigid cables would fail. Drag chain installations benefit from the cable's anti-torsion reinforcement and flexible construction, enabling continuous operation without mechanical failure.

Cable reel applications represent the primary use case, where the cable must withstand continuous winding and unwinding cycles whilst maintaining electrical integrity. The cable's construction specifically addresses the mechanical stresses associated with reel operation, including torsional loading and radius variations.

Mining Equipment Integration

Excavators, dumpers, and mobile crushers represent primary application targets for this cable system. These machines require reliable power transmission whilst operating in challenging environments with continuous repositioning requirements.

The cable's ability to handle S-type directional changes with minimum spacing requirements enables complex routing configurations necessary for mobile mining equipment. This flexibility reduces installation complexity whilst maintaining reliable power transmission.

High-Stress Mining Operations

High-stress reeling applications in mining environments demand cables capable of withstanding extreme mechanical loading whilst maintaining electrical performance. The cable's construction specifically addresses these requirements through its advanced reinforcement systems and material selection.

Operations involving frequent equipment repositioning benefit from the cable's rapid travel speed capabilities and robust construction, minimising downtime and maintenance requirements.

Frequently Asked Questions: Addressing Common Cable Concerns

Q: How does this cable handle the extreme temperature variations in open-pit mining?

A: The (N)TSCGEWOEU-R flexible power supply cable is engineered with advanced EPR insulation and specialised sheath compounds that maintain flexibility and electrical integrity across temperature ranges from -40°C to 90°C for fixed installations and -25°C to 80°C for flexible applications. The cable's multi-layer construction includes temperature-resistant materials that prevent brittleness in cold conditions and maintain structural integrity in high-temperature environments commonly found in mining operations.

Q: What makes this cable suitable for continuous reeling applications?

A: The cable's anti-torsion reinforcement system featuring polyamide thread braid vulcanised into the sheath construction provides exceptional resistance to the mechanical stresses encountered during reeling operations. Combined with Class 6 very fine stranding and advanced EPR compounds, the cable can handle operational speeds up to 60m/min and rewinding speeds up to 180m/min whilst maintaining electrical and mechanical integrity over extended service life.

Q: How does the cable resist oil and chemical contamination in mining environments?

A: The cable incorporates 5GM5 compound outer sheath with enhanced chemical resistance properties, meeting EN 60811-2-1 and IEC 60811-2-1 standards for oil resistance. This specialised compound provides comprehensive protection against hydraulic fluids, lubricants, acids, and alkalis commonly encountered in mining operations, whilst the waterproof construction prevents moisture ingress that could compromise electrical performance.

Q: What safety features protect against fire hazards in mining applications?

A: Fire safety is addressed through multiple design features including compliance with EN 60332-1-2 flame retardance standards and an oxygen index exceeding 29. The cable's construction materials are selected for their fire-resistant properties, whilst the semiconductive layers and EPR insulation maintain structural integrity during fire incidents, preventing electrical hazards and facilitating safe evacuation procedures.

Performance Data and Selection Guidelines

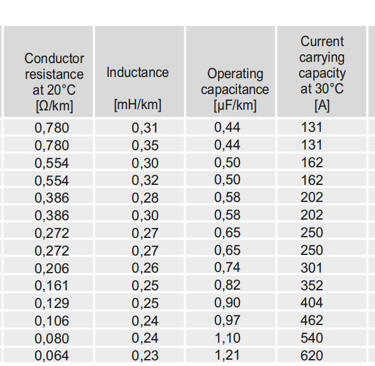

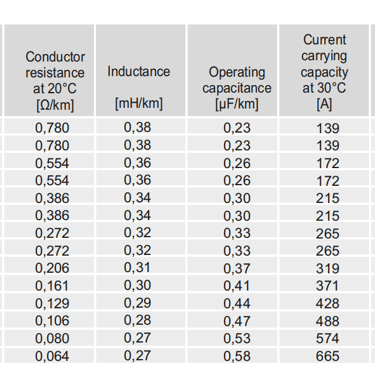

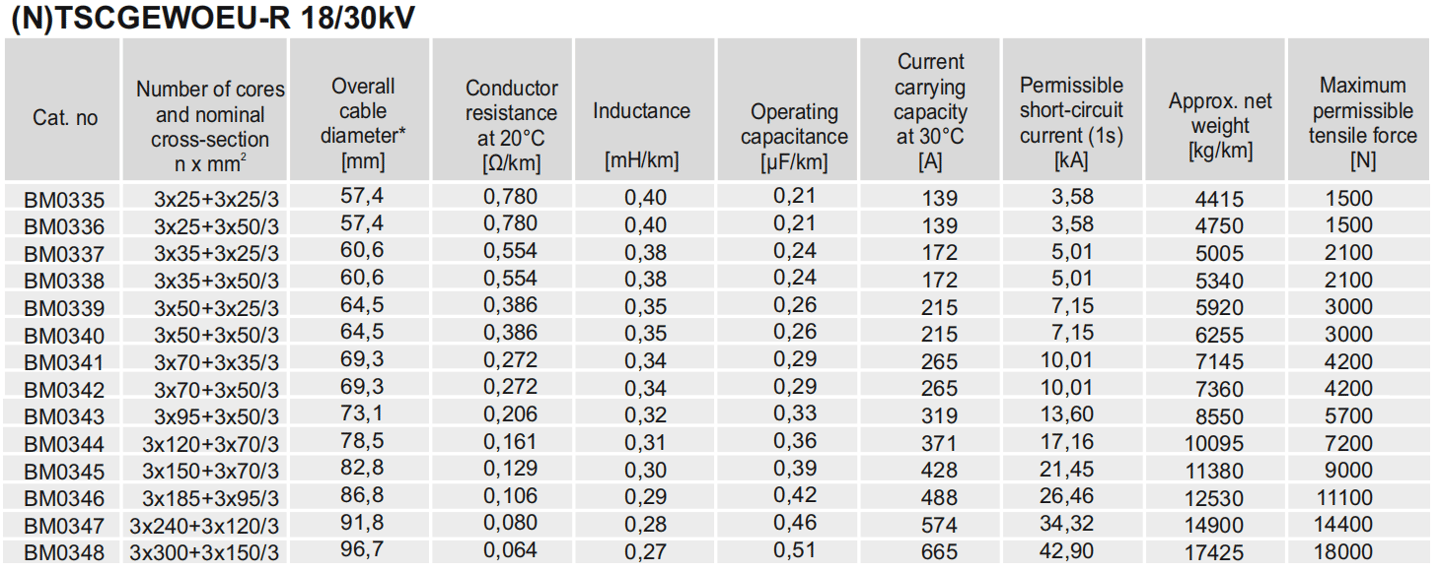

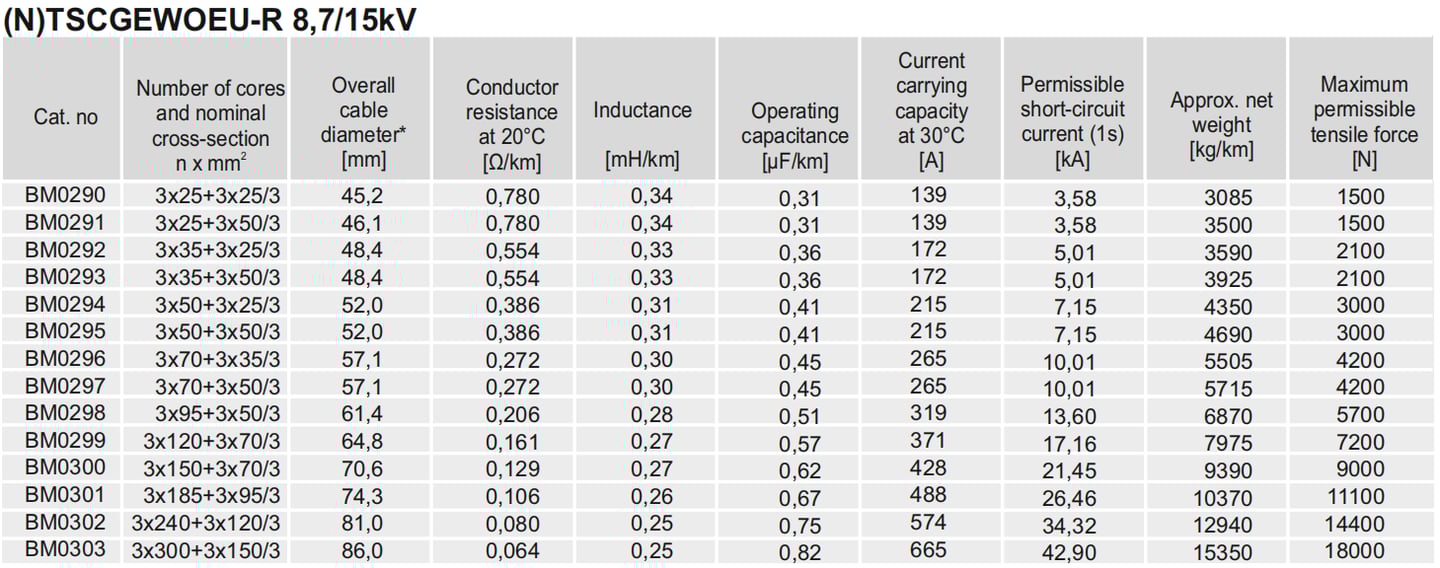

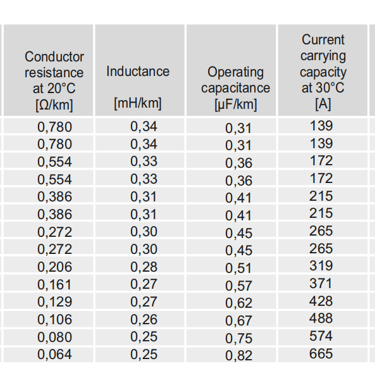

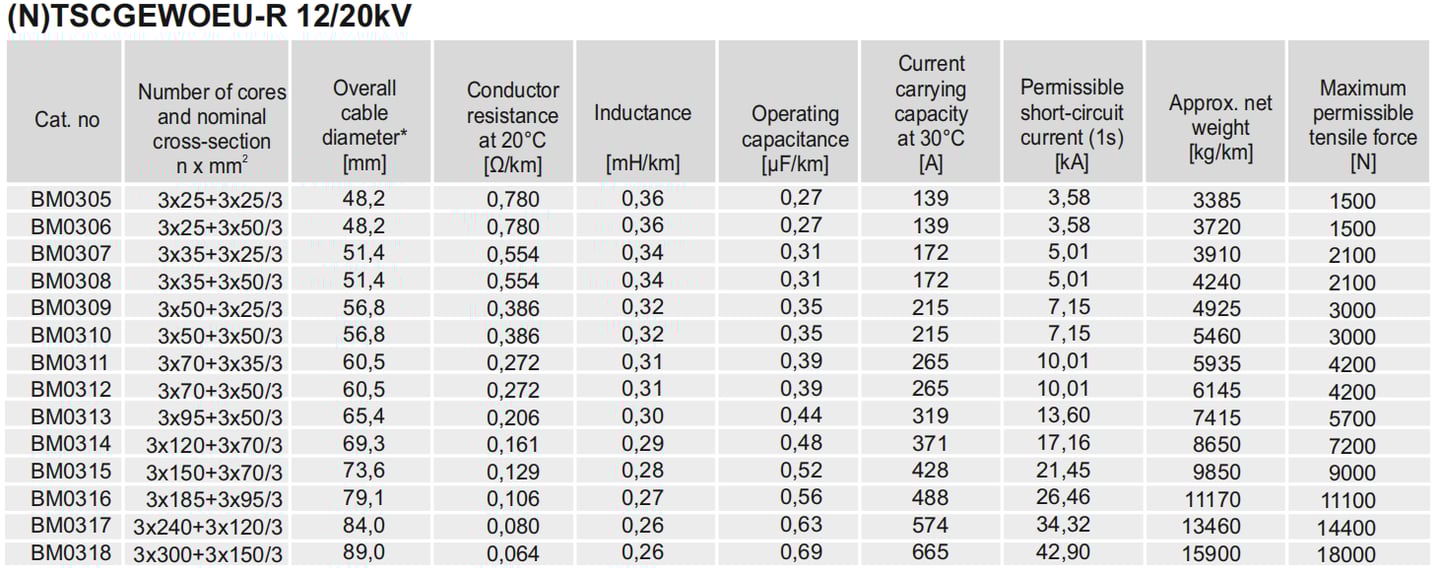

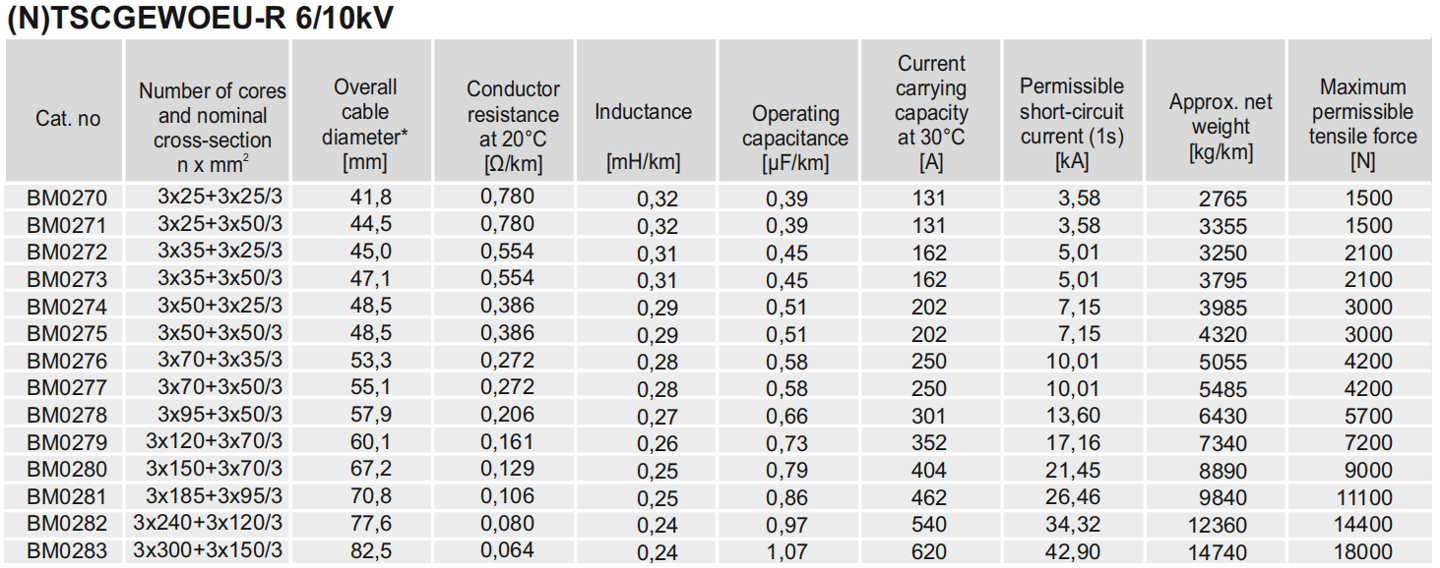

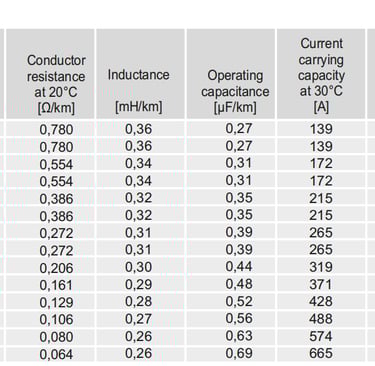

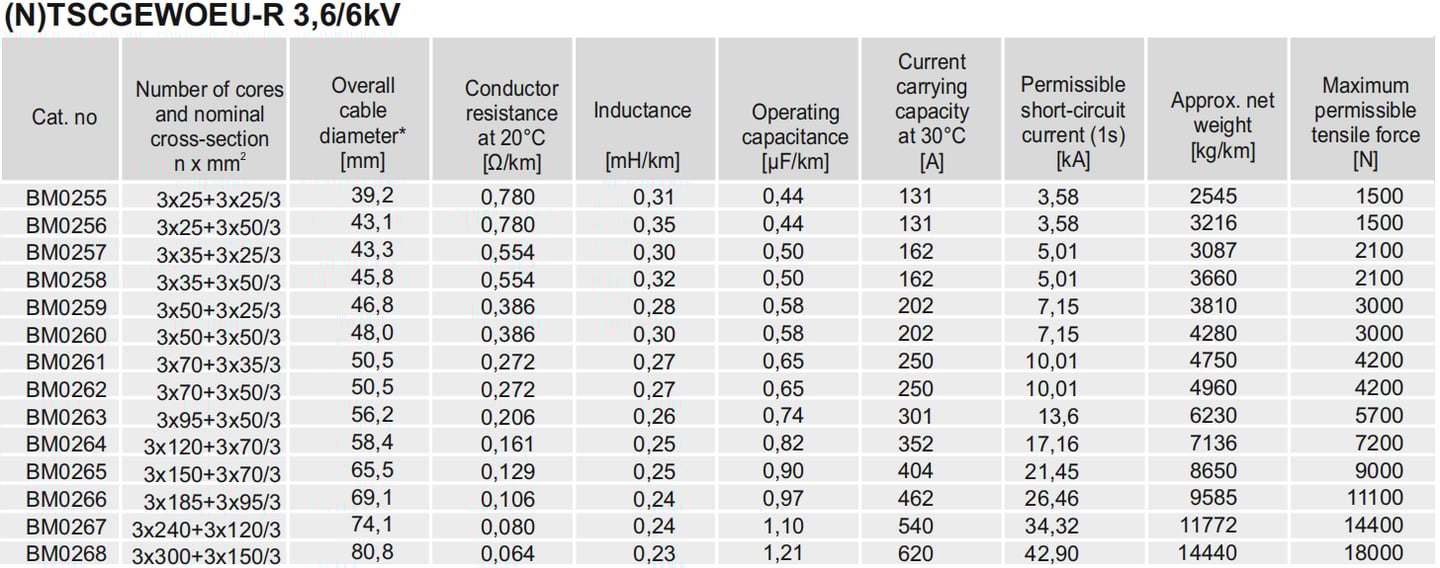

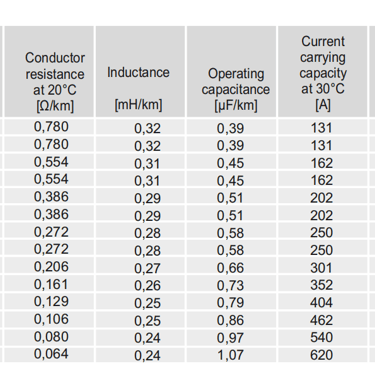

The cable is available across multiple configurations optimising performance for specific applications. Current-carrying capacities range from 131A to 665A at 30°C ambient temperature, accommodating diverse power requirements for mining equipment from smaller mobile units to large excavation machinery.

Short-circuit performance varies from 3.58kA to 42.90kA for one-second duration, providing robust protection against electrical faults. Cable weights range from approximately 1,500kg/km to 18,000kg/km, with corresponding maximum permissible tensile forces ensuring safe installation and operation.

Voltage ratings span from 3.6/6kV to 18/30kV, enabling applications across low, medium, and high-voltage mining power distribution systems. This broad range ensures compatibility with diverse mining equipment and power distribution architectures.

Conclusion: Optimising Mining Operations with Advanced Cable Technology

The (N)TSCGEWOEU-R flexible power supply cable represents a comprehensive solution for the demanding requirements of modern mining operations. Its sophisticated construction, incorporating advanced EPR insulation, anti-torsion reinforcement, and chemical-resistant sheath materials, delivers uncompromised performance in the harshest mining environments.

Key benefits include exceptional mechanical durability with ±100°/m torsional capability, rapid operational speeds up to 60m/min, comprehensive environmental resistance including UV and oil protection, and rigorous compliance with contemporary safety standards including CPR classification.

For mining operations requiring high-stress reeling cable solutions that maintain reliability under extreme conditions, this cable system provides the performance characteristics necessary to optimise productivity whilst ensuring operational safety. The cable's proven construction and extensive certification ensure compliance with international standards whilst delivering the durability required for successful mining operations.

Ready to enhance your mining operations with superior cable technology? Contact our technical specialists today for detailed specifications, custom configurations, and comprehensive quotations for your flexible EPR mining power cable requirements. Our expert team can provide tailored solutions optimised for your specific operational demands and environmental conditions.
