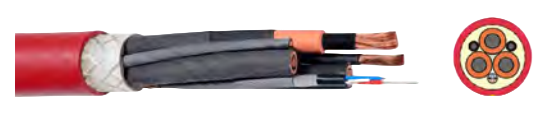

(N)TSCGEWOEU TENAX TTS-LWL Medium voltage reeling cable with fibre-optics
ower and data solution for high travel speeds and dynamic loads
$15.00
Application
Flexible medium voltage reeling cable with integrated fibre-optics for the combined transmission of energy and data, for application under high mechanical stresses, e.g. high travel speeds, dynamic tensile loads, multiple changes of direction into different planes, churning on running over rollers and torsional stresses.Mainly for mobile equipment, e.g. fast-moving container cranes and large moving equipment.
Global data
Type designation (N)TSCGEWOEU
Standard Based on DIN VDE 0250-813
Electrical parameters Rated voltage Max. permissible operating voltage AC Max. permissible operating voltage DC AC test voltage Current Carrying Capacity description |

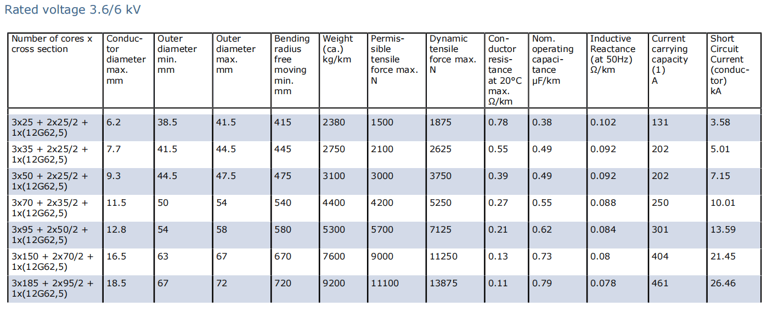

3.6/6 kV 4.2/7.2 kV 5.4/10.8 kV 11 kV |

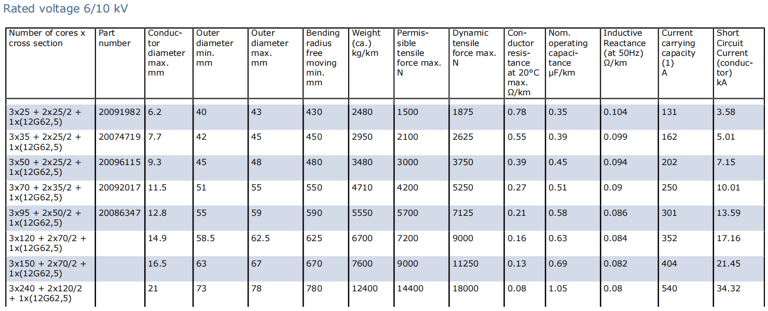

6/10 kV 6.9/12 kV 9/18 kV 17 kV |

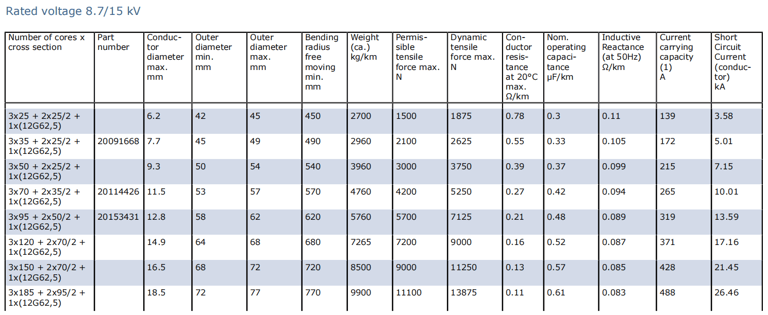

8.7/15 kV 10.4/18 kV 13.5/27 kV 24 kV |

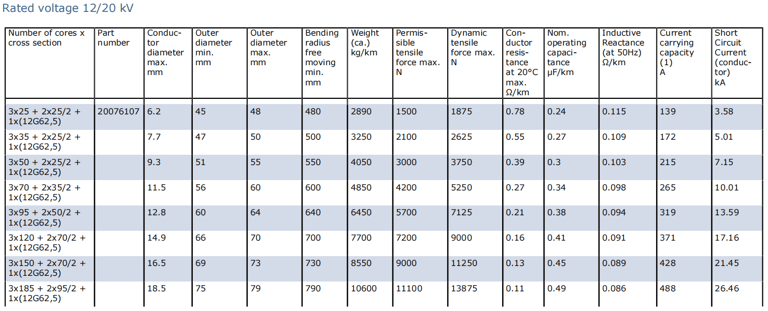

12/20 kV 13.9/24 kV 18/36 kV 29 kV |
| According to DIN VDE 0298 Part 4 | |||
Thermal parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -40 °C ; max +80 °C Ambient temperature in fully flexible operation min -25 °C ; max +80 °C
Mechanical parameters Max. tensile load on the conductor | 20 N/mm² |
Max. tensile load on the conductor during acceleration | 25 N/mm² |
Torsional stress | ± 50 °/m |
Min. bending radius | Acc. to DIN VDE 0298 part 3 |
Min. distance with S-type directional changes | 20 X D |
Travel speed | - Reeling operation: up to 180 m/min |
