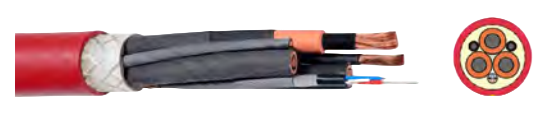

(N)TSCGEWOEU TENAX TTS Medium voltage reeling cable
High-performance MV reeling cable for fast-moving and large equipment applications
$35.00
Application
Flexible medium voltage reeling cable for application under high mechanical stresses, e.g. high travel speeds, dynamic tensile loads, multiple changes of direction into different planes, churning on running over rollers and torsional stresses.Mainly for mobile equipment, e.g. fast-moving container cranes and large moving equipment.
Global data |
|
Type designation | (N)TSCGEWOEU |
Standard | Based on DIN VDE 0250-813 |
Design features |
|
Conductor | Plain copper, fine stranded class 5 according to DIN EN 60228 / VDE 0295 |
Insulation | Rubber, compound type EPR-SHS EI6, super-clean |
Electrical field control | Inner and outer layer of semiconductive rubber compound |
Core arrangement | Cores layed up around conductive filler with aramid rope in the center, earth conductor split into the interstices. |
Inner sheath | Rubber, special compound, mechanical properties acc. to 5GM3 |
Reinforcement | Polyester anti-torsion braid |
Outer sheath | Abrasion and tear proof special rubber compound, quality at least 5GM5 acc. to DIN VDE 0207 part 21, resistance to ozone, UV and oil. Sheath colour: red or black with yellow stripe |
Electrical parameters Rated voltage Max. permissible operating voltage AC Max. permissible operating voltage DC AC test voltage Current Carrying Capacity description |

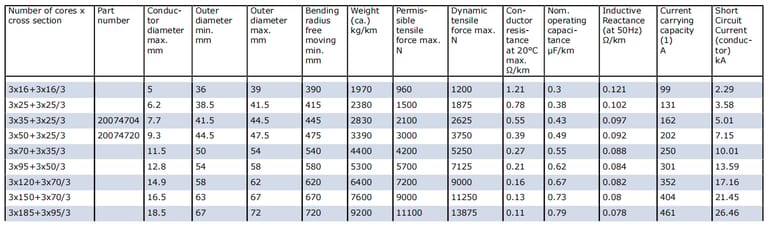

3.6/6 kV 4.2/7.2 kV 5.4/10.8 kV 11 kV |

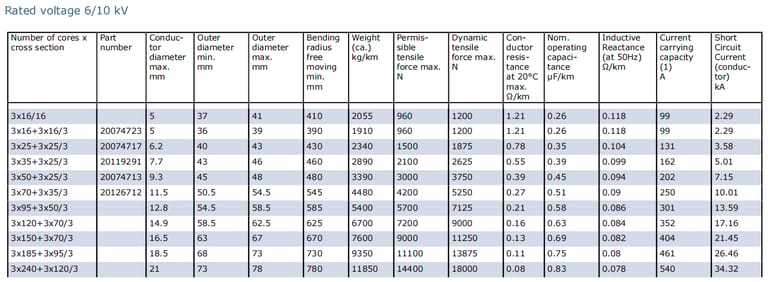

6/10 kV 6.9/12 kV 9/18 kV 17 kV |

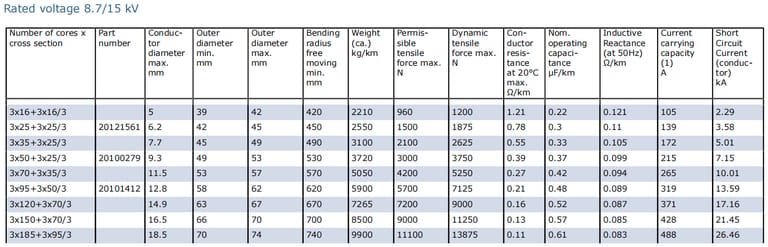

8.7/15 kV 10.4/18 kV 13.5/27 kV 24 kV |

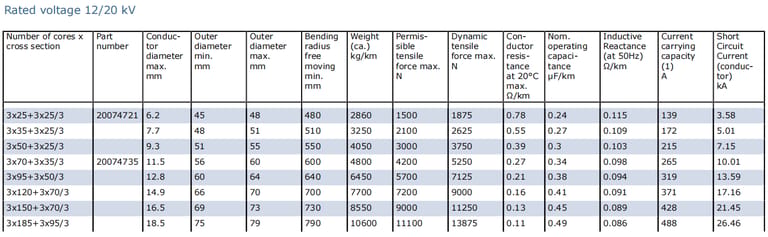

12/20 kV 13.9/24 kV 18/36 kV 29 kV |
| According to DIN VDE 0298 Part 4 | |||
Thermal parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -40 °C ; max +80 °C Ambient temperature in fully flexible operation min -25 °C ; max +80 °C
Mechanical parameters Max. tensile load on the conductor | 20 N/mm² |
Max. tensile load on the conductor during acceleration | 25 N/mm² |
Torsional stress | ± 50 °/m |
Min. bending radius | Acc. to DIN VDE 0298 part 3 |
Min. distance with S-type directional changes | 20 X D |
Travel speed | - Reeling operation: up to 180 m/min |
