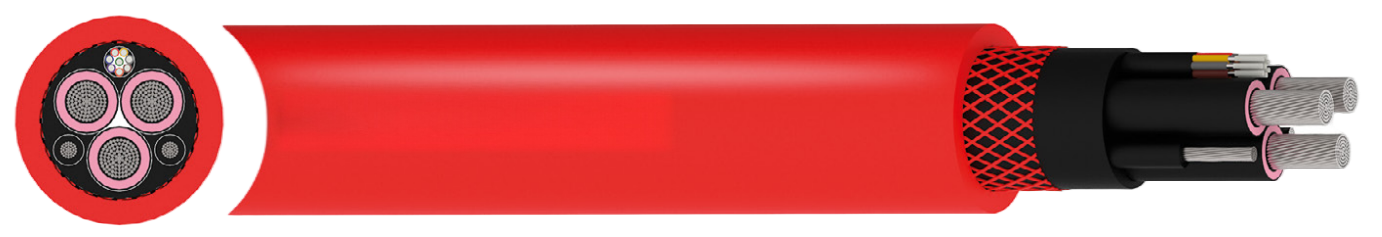

(N)TSCGEWÖU 3.6/6kV & 6/10kV FO Cable
Flexible reeling cable with integrated fibre optics, engineered for extreme mechanical stress, torsion, multi-plane deflection, and high-speed reeling in demanding applications.
$75.00
APPLICATION Flexible reeling cable with integrated fibre optic wires for high and extreme mechanical stresses, including torsional stress,deflection into different planes and high reeling speed. Suitable for indoor and outdoor applications. |
CHARACTERISTICS Voltage Rating Uo/U 3.6/6kV 6/10kV Test Voltage 3.6/6kV: 11kV 6/10kV: 17kV Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 10 x overall diameter Maximum Short Circuit Temperature +250°C Ambient Temperature Fixed: -40°C to +80°C Flexed: -25°C to +80°C |
CONSTRUCTION
Phase Conductor
Class 5 tinned copper
Insulation
Rubber compound
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
Earth Conductor
Class 5 tinned copper conductor
Fibre Optics
Transmission data kind 50/125 multimode, 62.5/125
multimode, 9/125 singlemode
Rubber compound over the twisted cores
Central Filler
Semi-conductive compound on a textile polyester support
Inner Sheath
Rubber compound
Anti-Torsion Braid
Polyester braid between the inner and outer sheath
Outer Sheath
Rubber compound
Sheath Colour
● Red
STANDARDS
VDE 0250 Part 813, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
