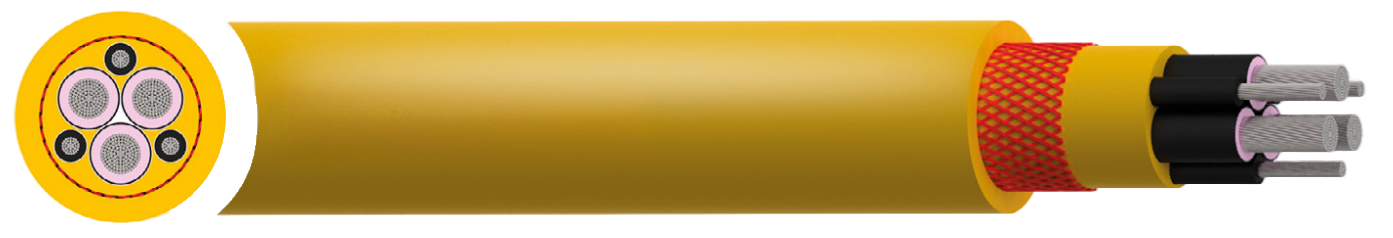

(N)TSCGEWÖU 8.7/15kV & 12/20kV ATB Cable
Subtitle: High-voltage flexible trailing cable for heavy mobile mining equipment, designed to endure extreme stress and abrasion in opencast operations.
$25.00
APPLICATION Flexible cable for energy supply to heavy mobile equipment such as drag lines, shovels, dredges, drills under extreme mechanical stresses and abrasion during trailing operation in opencast mines. Suitable for indoor and outdoor applications. |
CHARACTERISTICS Voltage Rating Uo/U 8.7/15kV 12/20kV Test Voltage 8.7/15kV: 24kV 12/20kV: 29kV Ambient Temperature Fixed: -40°C to +80°C Flexed: -25°C to +80°C Maximum Short Circuit Temperature +250°C Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 10 x overall diameter |
CONSTRUCTION
Phase Conductor
Class 5 tinned copper conductor
Insulation
Rubber compound
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner
and outer semi-conductive rubber layer on the insulation
Earth Conductor
Class 5 tinned copper conductor
Central Filler
Semi-conductive compound on a textile polyester support
Inner Sheath
Rubber compound
Anti-Torsion Braid
Polyester braid between the inner and outer sheath
Outer Sheath
Abrasion resistant rubber compound
Sheath Colour
. Yellow
STANDARDS
VDE 0250 Part 813, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
