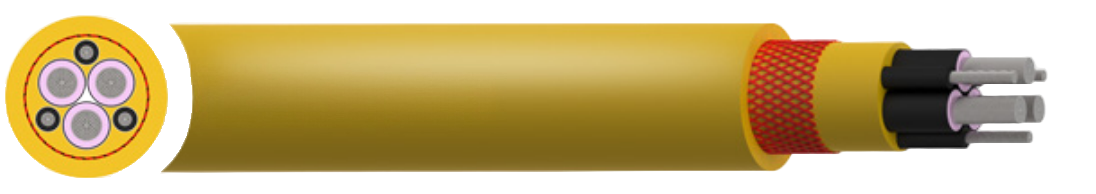

(N)TSCGEWÖU Halogen-Free Mining Cable (3.6/6kV & 6/10kV)
ZH flexible cable for draglines, shovels, dredges and drilling equipment
$50.00
APPLICATION Flexible cable for the energy supply to heavy mobile equipment such as drag lines, shovels, dredges and drills under extreme mechanical stresses and abrasion during trailing operations in opencast mines. Halogen-free polyurethane sheathed version. Suitable for indoor and outdoor applications |
CHARACTERISTICS Voltage Rating Uo/U 3.6/6kV 6/10kV Test Voltage 3.6/6kV: 11kV 6/10kV: 17kV Ambient Temperature Fixed: -50°C to +80°C Flexed: -25°C to +80°C Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 10 x overall diameter Maximum Torsional Stress ±25°/m |
CONSTRUCTION
Phase Conductor
Class 5 tinned copper
Insulation
Rubber compound
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner
and outer semi-conductive rubber layer on the insulation
Earth Conductor
Class 5 tinned copper conductor
Central Filler
Semi-conductive compound on a textile polyester support
Anti-Torsion Braid
Polyester braid between the inner and outer sheath
Inner Sheath
Halogen-free polyurethane
Outer Sheath
Halogen-free polyurethane
Sheath Colour
. Yellow
STANDARDS
VDE 0250 Part 813, HD 22.16 , VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2 Halogen Free according to IEC/EN 60754-1/2
