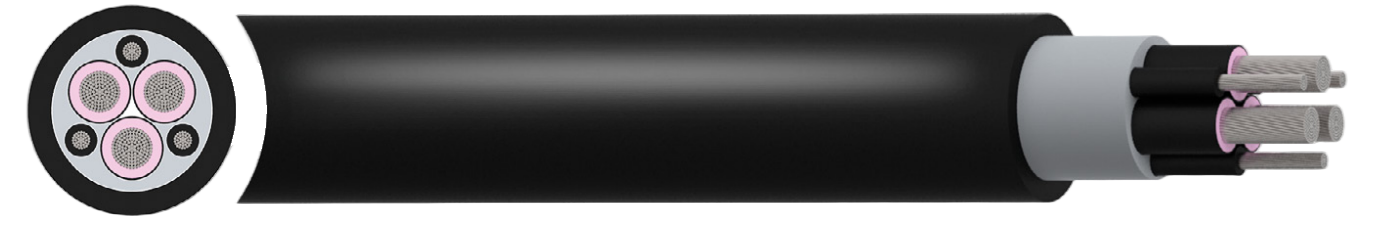

(N)TSCGEWÖU High Voltage Submersible Cable (8.7/15kV & 12/20kV)
Flexible solution for 300m saltwater immersion and high mechanical stress
$25.00
APPLICATION Flexible supply cable for use in permanent immersion in salty and brackish water up to 300 metres under high mechanical stresses. For applications such as pumps, dredges and floating docks. It is suitable for trailing operations of opencast mining equipment. Suitable for indoor and outdoor applications. |
CHARACTERISTICS Voltage Rating Uo/U 8.7/15kV 12/20kV Test Voltage 8.7/15kV: 24kV 12/20kV: 29kV Ambient Temperature Fixed: -40°C to +80°C Flexed: -25°C to +60°C Maximum Permissible Water Temperature +40°C Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 10 x overall diameter |
CONSTRUCTION
Phase Conductor
Class 5 tinned copper
Insulation
Rubber compound
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner
and outer semi-conductive rubber layer on the insulation
Earth Conductor
Class 5 tinned copper
Central Filler
Semi-conductive compound on a textile polyester support
Inner Sheath
EPR rubber compound water proofing
Outer Sheath
CM rubber compound water proofing
Sheath Colour
● Black
STANDARDS
VDE 0250 Part 813, HD 22.16, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
