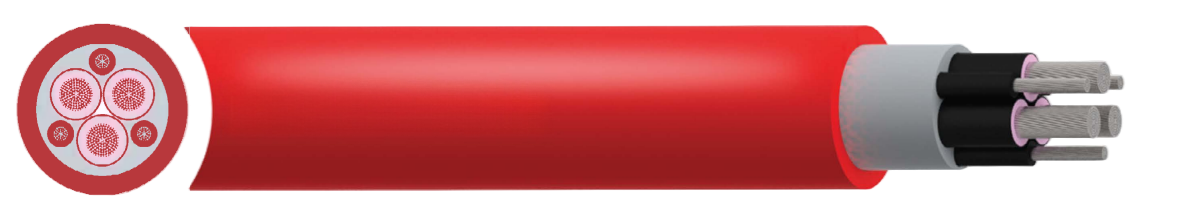

NTSCGEWOU Medium Voltage Cable – 3.6/6 kV to 12/20 kV
Flexible power cable for fixed distribution in mining and material handling, suitable for indoor and outdoor use
$10.00
APPLICATION

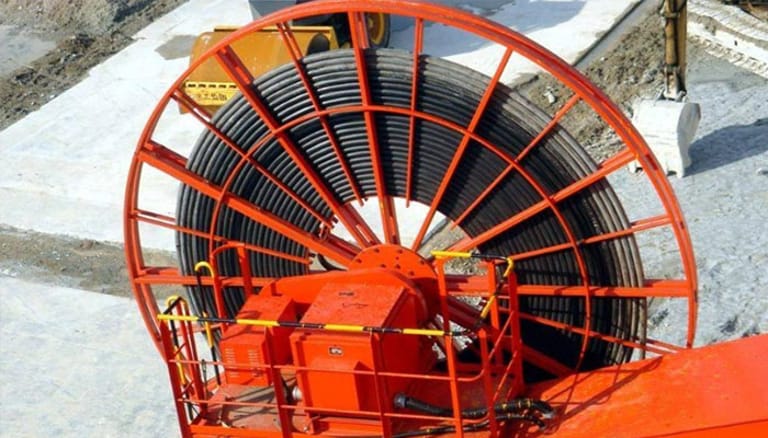

Flexible cable for fixed distribution lines in mines and alongside material handling equipment. Suitable for indoor and outdoor applications.
CABLE THIRD-PARTY ACCREDITATION
VDE APPROVED - Cables are tested and approved by the VDE Testing & Certification Institute.
STANDARDS
VDE 0295, IEC 60228, VDE 0207 Part 20 & 21, VDE 0250 Part 813, VDE 0298 Part 3, IEC 60811-2-1, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
CHARACTERISTICS
Voltage Rating (Uo/U)
3.6/6kV; 6/10kV, 8.7/15kV, 12/20kV
Test Voltage
3.6/6kV: 11kV; 6/10kV: 17kV, 8.7/15kV: 24kV, 12/20kV: 29kV Maximum Torsional Stress (口/m): ± 25
Maximum Working Speed (m/min): 20
Maximum Short Circuit Temperature: 250°C
Mobile Condition: -25°C to+ 80°C
Static Condition: -40°C to+ 80°C
Minimum Bending Radius
Fixed: 6 x overall diameter
CONSTRUCTION
Phase Conductor
Class 5 flexible stranded tinned copper
Insulation
Rubber compound
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer Semi-conductive rubber layer on the insulation
Earth Conductor
Class 5 tinned copper conductor
Central Filler
Semi-conductive compound on a textile polyester support
Inner Sheath
Rubber compound
Anti-Torsion Braid
Polyester
Outer Sheath
Rubber compound
Sheath Colour
● Yellow
