NTSKCGEWöU

For the connection of mobile electrical equipment in mines and tunnels. Suitable also for coal cutting machines, particularly for extreme bending loads inside of steel or plastic track chains.

Power Cores

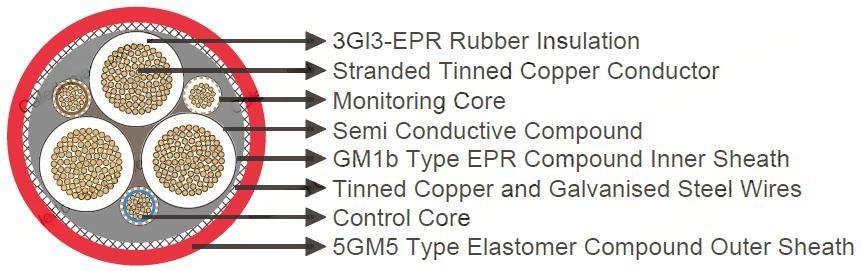

conductor	Tinned copper conductor DIN VDE 0295 class 5
Insulation	Based on 3Gl3-EPR rubber and semi rubber compound
CONTROL CORES + MONITORING PE CORE(S)
conductor	Tinned copper conductor DIN VDE 0295 class 5
Insulation	3Gl3 type EPR compound and semi conductive rubber compound
Cradle Separator	A shaped section of elastomeric material. Semi conductive, with control wire in the center. designed to support the core assembly. fill the center interstice and provide a specified separation between individual power cores
Electrical Field Control	Inner and Outer semiconductive layer of semiconductive rubber
Core Identification	Power cores naturally colored. Control cores blue colored
Lay Up	Three main conductors laid-up with three control cores & PE conductors in interstice over a cradle separator.
Inner Sheath	GM1b Type EPR compound
Screen / Armour	Flexible- pliable armour in helix of tinned copper and galvanised steel wires
Outer Sheath	5GM5 Type elastomer compound. Red

Rated Voltage	1.8/3 KV	3.6/6 KV
AC Test Voltage	6KV	11KV
Max.Permissible Operating Voltage AC	2.1/3.6 KV	4.2/7.2 KV
Max.Permissible Operating Voltage DC	2.7/5.4 KV	5.4/10.8 KV
Min Bending Radius	DIN VDE 0298-3
Current Carrying Capacity	DIN VDE 0298-4
Working Temperature
Fixed	-40°C-+80°C
Mobile	-25°C-+80°C
