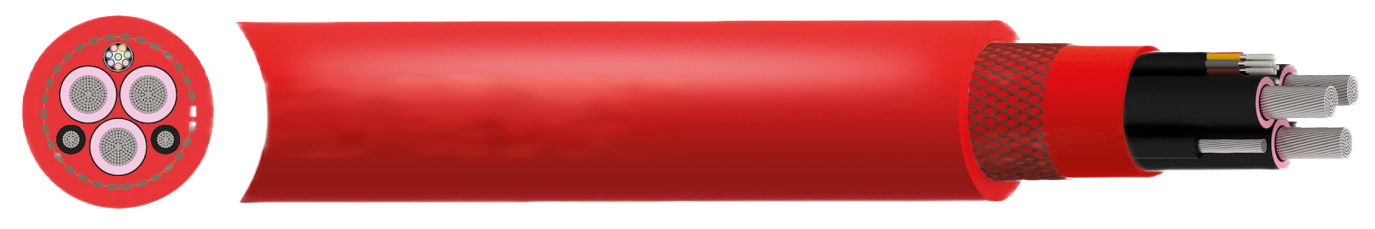

(N)TSKCGEWÖU Ultra-Flexible Mining Cable - 3.6/20kV
Reduced dimensions for high-speed reeling in underground and opencast operations
$30.00
APPLICATION Flexible reeling cable with reduced weight and dimensions for high and extreme mechanical stresses, e.g. torsional stress, deflection into different planes and high reeling speed. Also usable for reeling application in underground and opencast mining. |
CHARACTERISTICS Voltage Rating Uo/U 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV Test Voltage 3.6/6kV: 11kV | 6/10kV: 17kV | 8.7/15kV: 24kV | 12/20kV: 29kV Maximum Torsional Stress: ± 25°/m Maximum Tensile Load: 30N/mm2 Maximum Working Speed: 240m/min Temperature Rating Maximum Short-Circuit temperature:250°C Flexing: -30°C to + 90°C Fixed: -50°C to + 90°C Minimum Bending Radius Fixed: 6x overall diameter Flexed: 10 x overall diameter |
CONSTRUCTION
Phase Conductor
Class 5 Flexible Tinned Copper
Insulation
Rubber Compound (Phase Conductor only)
Semi-Conductive layers with semi-conductive insulation (Phase Conductor only)
Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
Earth Conductor
Class 5 Flexible Tinned Copper Conductor
Central Filler
Semi-conductive compound
Fibre Optics
50/125 Multimode, 62.5/125 Multimode, 9/125 Singlemode
Inner Sheath
Rubber Compound
Anti-twist element Polyester braid
Outer Sheath
Rubber Compound
Outer Sheath Colour
● Red
STANDARDS

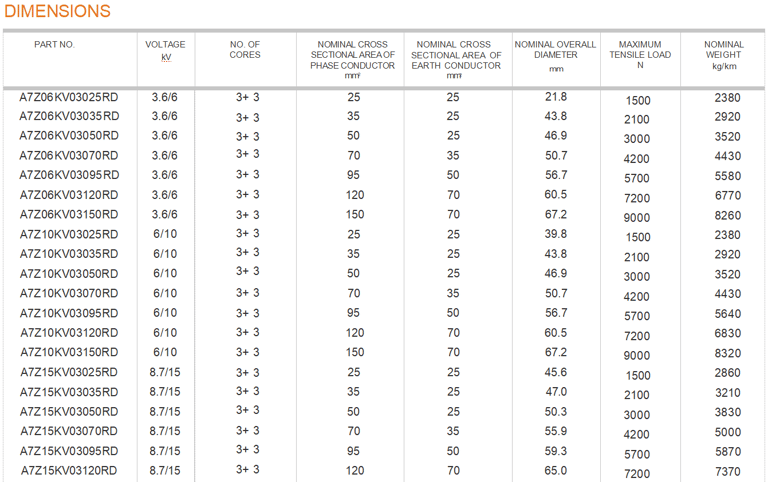

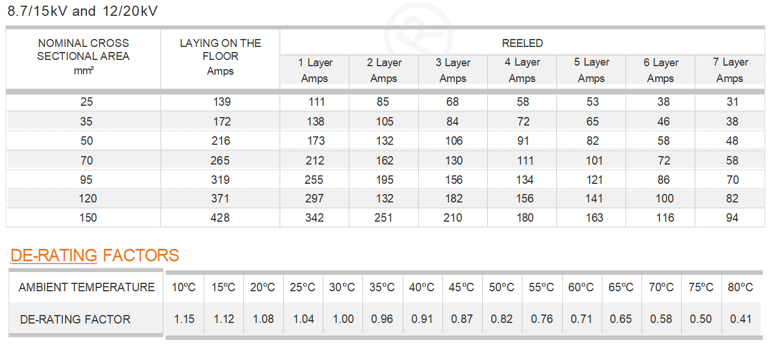

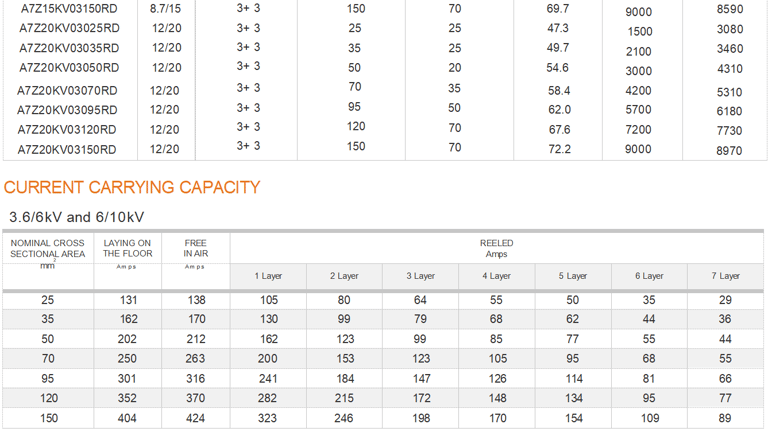

Based on DIN VDE 0250 Part 813, VDE 0295 (IEC 60228), VDE 0207 Part 20 & Part 21, IEC 60811-404, IEC60811-403,
IEC 60332-1-2, ISO 4892-2, Special Reeling Test
