NTSWöU-J
Used in dry, damp and wet places where there are mechanical effects, in mines, in trolley, systems, in cranes, in tunneling applications as trailing and cable power supply.
Standards
Construction | DIN VDE 0250-813 |
General Requirements | DIN VDE 0250-1 |
Guide Use | DIN VDE 0298-3 |
Electrical Tests | DIN VDE 0472-501, 503, 508 |
Non-Electrical Tests | DIN VDE 0472-401. 402,602,303, 615 |
Under Fire Condition Tests | DIN VDE 0472-803, 804 |
Flame Retardant | VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1 |
Oil Resistant | HD/EN/IEC 60811-2-1.,DIN VDE0473-811-2-1 |

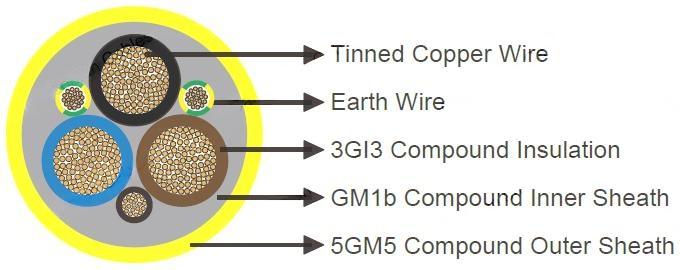

Cable Construction
Conductor : Electrolytic,stranded,tinned copper wire DIN VDE 0295 class 5.
Insulation : All cores are insulated with 3Gl3 compound (acc. to DIN VDE 0207 part 20).
Lay Up : All cores are laid up in contact with each other and interstitial ground cores.
Inner Sheath : Special elastomeric compound CM1b (acc. to DIN VDE 0207 Teil 21).
Outer Sheath : Heavy-duty elastomer 5GM5 (acc. to DIN VDE 0207 Teil 21) Yellow or black.
Technical Characteristics
Rated Voltage | 0.6 / 1 KV |
AC Test Voltage | 3KV |
Operating Temperature | Max. 90°C |
Short - Clrcult Temperature | Max. 250°C |
Working Temperature | |
Fixed | -40°C-+80°C |
Mobile | -25°C-+80°C |
Min Bending Radius | VDE 0298-3 Tab.3 |
Current Carrying Capacities | VDE 0298-4 |
