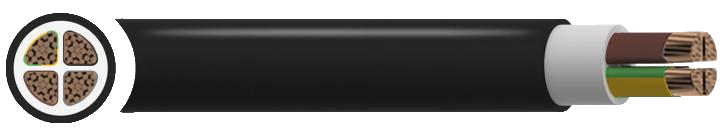

NY2Y Cable
Suitable for urban networks, industrial plants, electric power plants and for the connection of control devices in industry, traffic etc.
APPLICATION The NY2Y cable is mainly placed in earth, in ducts, on support brackets and in dry and wet conditions where it is not expected to be at risk of mechanical damages or exposed to the mechanical tensile strain. Suitable for urban networks, industrial plants, electric power plants and for the connection of control devices in industry, traffic etc. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating Operating temperature: -35ºC to +70ºC Maximum conductor temperature: +70ºC Short Circuit Temperature 160°C Minimum Bending Radius Single core: 15 x overall diameter Multi core: 12 x overall diameter |
CONSTRUCTION
Conductor
RE: Class 1 round solid copper
RM: Class 2 round stranded copper
SM: Class 2 sector shaped stranded copper
Insulation
PVC (Polyvinyl chloride)
Outer Sheath
HDPE (High-density polyethylene)
Core Identification
2 core:
Black Brown
3 core:
Black Brown Grey
4 core including earth:
Black Brown Grey Green/Yellow
4 core:
Black Brown Grey Blue
5 core:
Black Brown Grey Blue Black
Outer Sheath Colour
● Black
