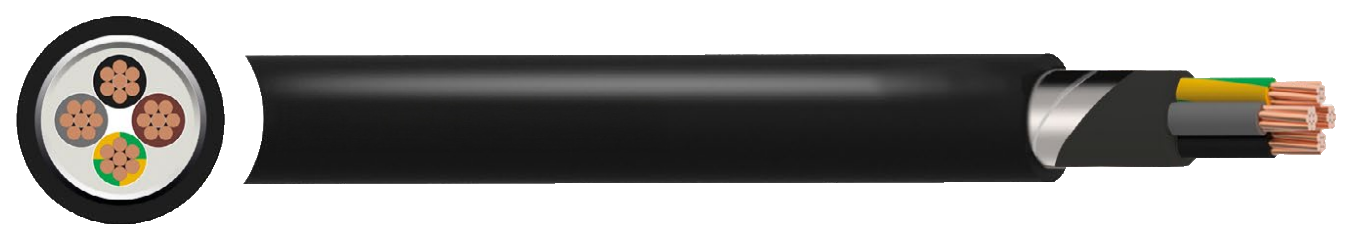

NYBY PVC 0.6/1kV Power Cable
Armoured copper PVC power cable for reliable indoor, underground, and industrial installations in harsh environments
$25.00
APPLICATION：The NYBY cable is suitable for installation indoors, in cable channels and in duct in ground in switchgear, power stations and industrial application, in harsh environments where a high level mechanical protection is required.
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Test Voltage
3.5kV
Temperature Rating
Maximum Operating: +70ºC
Maximum Short-Circuit: +160°C
Minimum Bending Radius
12 x overall diameter
CONSTRUCTION
Conductor
Class 2 Stranded copper
Insulation
PVC (Polyvinyl chloride)
Filler
PVC (Polyvinyl chloride)
Armour
Double galvanized steel tape
Outer Sheath
PVC (Polyvinyl chloride)
Core Identification
2 core: Brown Blue
3 core: ● Brown ● Blue e Green/Yellow
4 core: ● Brown ● Black e Grey e Green/Yellow
5 core: ● Brown ● Blue ● Black e Grey e Green/Yellow
Outer Sheath Colour
● Black
STANDARDS
IEC 60502-1, VDE 0276-603
