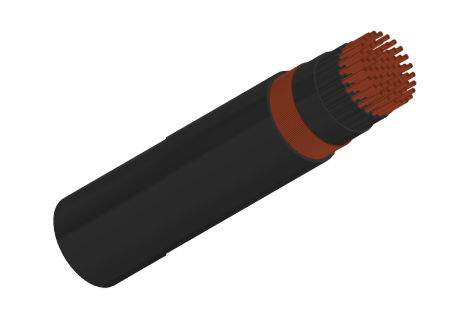

NYCY
Cable
Application and Description
NYCY cables are used in power plants, industrial and switching installations, for street lighting, domestic power supply connections, in secondary distribution networks and other. These cables are preferentially used for underground application as well as for interior installation in room and cable ducts and for outdoor and applications, for indoor installations, in the open air, underground and in water where greater mechanical
Standard and Approval
VDE0276 part 603, CENELEC HD603 S1, IEC 60502
7 cores and above to VDE0276 part 627, CENELEC HD627 S1, IEC 60502

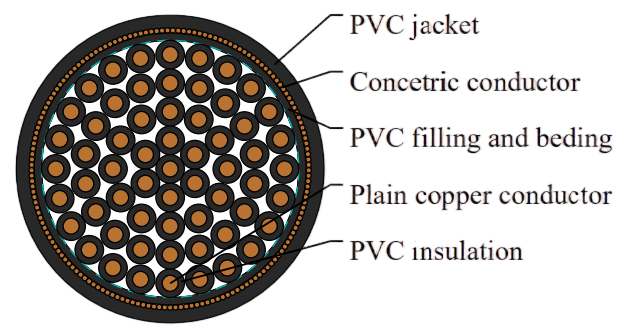

Cable Construction
Solid plain copper conductor |
Strands to DIN VDE 0295 cl. 1 and IEC 60228 cl. 1 |
PVC insulation DIV4 to HD 603.1 |
Color coded to DIN VDE 0293-308, 0276 part 603 or HD 186 |
PVC filling and bedding |
Concentric conductor: copper wires and helical copper tape |
PVC outer jacket DMV5 to HD 603.1 |
Technical Characteristics
Working voltage | 600/1000 volts |
Test voltage | 4000 volts |
Flexing bending radius | 15 x Ø |
Static bending radius | 12 x Ø |
Flexing Temperature | -5º C to +50º C |
Fixed installation temperature | - 40º C to +70º C |
Short circuit temperature | +160º C |
Flame retardant | IEC 60332.1 |
Insulation resistance | >100 MΩ x km |
