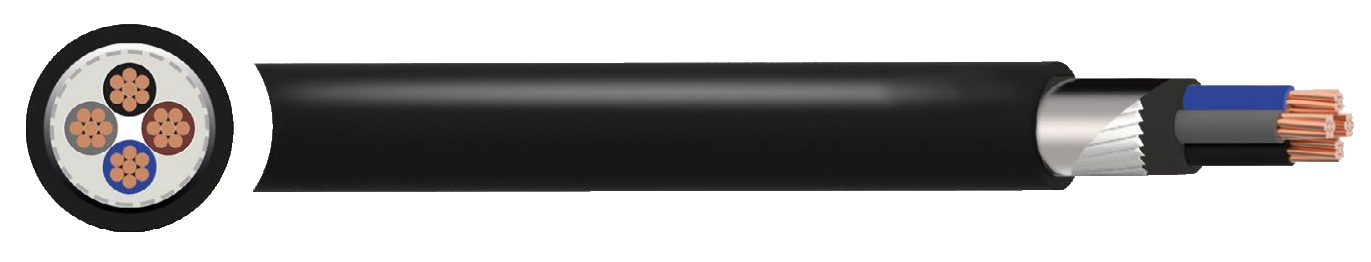

NYFGbY Copper Conductor PVC SWA Power Cable 0.6/1kV
Heavy-duty armoured copper cable with PVC insulation and sheath for underground, indoor, and trunking installations in harsh conditions
$15.00
APPLICATION
The NYFGbY cable is suitable for for installation in the ground, indoors or on cable trunking where increased mechanical protection is required due to harsh operating conditions.
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Test Voltage
3.5kV
Temperature Rating
Maximum Operating: +70ºC
Maximum Short-Circuit: +160°C
Minimum Bending Radius
12 x overall diameter
CONSTRUCTION
Conductor
Class 2 Stranded copper
Insulation
PVC (Polyvinyl chloride)
Filler
PVC (Polyvinyl chloride)
Armour 1
SWA (Galvanised flat steel wire)
Armour 2
Galvanized steel tape
Outer Sheath
PVC (Polyvinyl chloride)
Core Identification
2 core: Blue Brown
3 core: ● Brown ● Black ● Grey
4 core: ● Blue ● Brown ● Black ● Grey
5 core: ● Blue ● Brown ● Black ● Grey ● Black
Outer Sheath Colour
● Black
