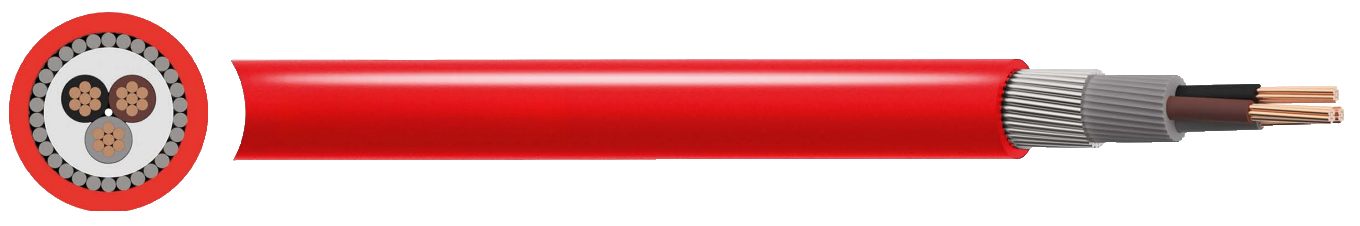

NYFGY Copper Conductor PVC SWA Power Cable 3.6/6 (7.2)kV
Medium voltage armoured copper cable for fixed power and control installations, suitable for direct burial or immersion
$8.00
APPLICATION
This cable is suitable for the power or control supply of fixed installations or apparatus. It can be buried or immersed without additional mechanical protection, subject to regulations.
STANDARDS
VDE 0271, IEC 60228
Flame Retardant according to IEC 60332-1
CHARACTERISTICS
Voltage Rating
3.6/6 (7.2)kV
Temperature Rating
Fixed: -5 ; +70 °C
Maximum conductor temperature : 70°C
Minimum Bending Radius
15 x Overall diameter
CONSTRUCTION
Conductor
Class 2 stranded copper conductor
Insulation
PVC YI4 (Polyvinyl Chloride)
Filler
PVC (Polyvinyl Chloride)
Tightness Sheath
PVC (Polyvinyl Chloride)
Armour
SWA (Galavanized flat steel wires)
Sheath
PVC (Polyvinyl Chloride)
Sheath Colour
● Red
