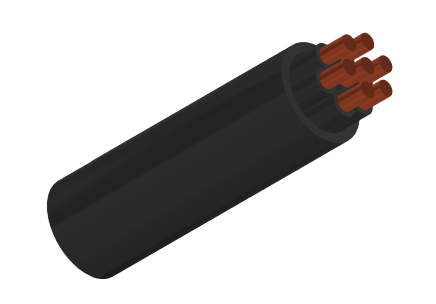

NYY-J / NYY-O

Cable

Application and Description

NYY power cable is designed for energy supply in cable ducts, power stations, industry and distribution boards and in subscriber networks. May also be used in brickwork and in concrete with the exception of cabling in shaken, vibrated or compressed concrete. NYY cables can be installed in open air, underground, in water and indoors where mechanical damages are not to be expected. The UV-resistance allows for outdoor use.

Standard and Approval

VDE-0276 Part-603 & Part-627, HD 603.1 & 627 S1, IEC 60502, VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

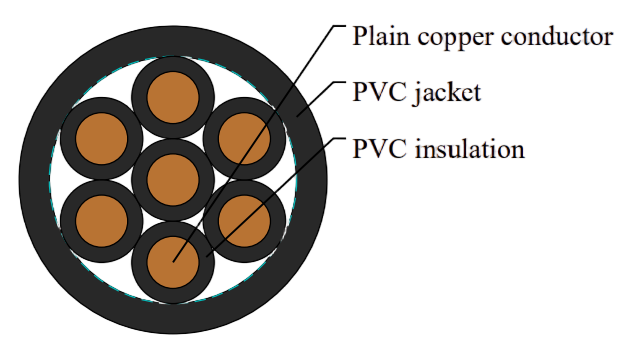

Cable Construction

Solid or stranded, plain copper conductor

Strands to DIN VDE 0295 cl. 1 or cl. 2, BS 6360 cl. 1 or cl. 2 and IEC 60228 cl. 1 or cl. 2

PVC insulation DIV4 to HD 603.1

Color coded to DIN VDE 0293-308, 0276 part 603 or HD 186

Conductor color for 3+1/2 conductor
J-type: green-yellow (1/2), brown, black, gray
O-type: blue (1/2), brown, black, gray

PVC outer jacket DMV5 to HD 603.1

Technical Characteristics

Working voltage	600/1000 V
Test voltage	4000 V
Flexing bending radius	15 x Ø
Static bending radius	12 x Ø
Flexing Temperature	-5º C to +50º C
Fixed installation temperature	- 40º C to +70º C
Flame retardant	IEC 60332.1
Insulation resistance	>100 MΩ x km
