Overhead Line (AAC) LSZH Cable
APPLICATION To be used for the purpose of screening telecommunication cables from electrical interference.
$3.00
APPLICATION
To be used for the purpose of screening telecommunication cables from electrical interference. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.
CHARACTERISTICS
Temperature Rating
Fixed: -30°C to +70°C
Minimum Bending Radius
9 x overall diameter

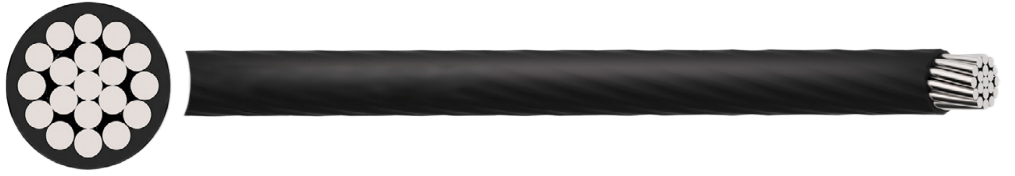

CONSTRUCTION
Conductor
Single core stranded aluminium conductor
Sheath
LSZH (Low Smoke Zero Halogen)
Insulation Colour
Red Black ● Yellow Green
