PA LSZH SWB Cable
APPLICATION：A LSZH (Low Smoke Zero Halogen) fieldbus cable with a SWB (Steel Wire Braid) designed for transmission where additional mechanical protection is required.
$15.00
APPLICATION
A LSZH (Low Smoke Zero Halogen) fieldbus cable with a SWB (Steel Wire Braid) designed for transmission where additional mechanical protection is required.
CHARACTERISTICS
Voltage Rating
300V (Not for power purposes)
Temperature Rating
Fixed: -30°C to +80ºC
Minimum Bending Radius
Fixed: 15 x overall diameter

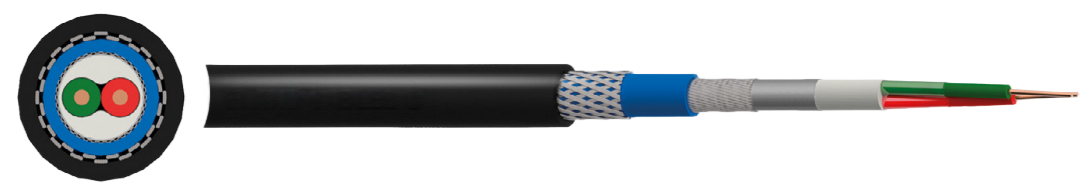

CONSTRUCTION
Conductor
Class 1 solid copper conductor
Insulation
Solid PE (Polyethylene)
Separation
PET (Polyester Tape)
Filler
HF (Halogen free)
Shield 1
Al/PET (Aluminium/Polyester Tape)
Shield 2
TCWB (Tinned Copper Wire Braid)
Inner Sheath
LSZH (Low Smoke Zero Halogen)
Armour
GSWB (Galvanized Steel Wire Braid)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
● Green ● Red
Outer Sheath Colour
● Black
