PAP CU/PVC/PVC/AWA/PVC (SINGLE CORE) PVC Insulated,PVC Bedded,Aluminium Wire Armoured,PVC Sheathed Cable,0.6/1kV,

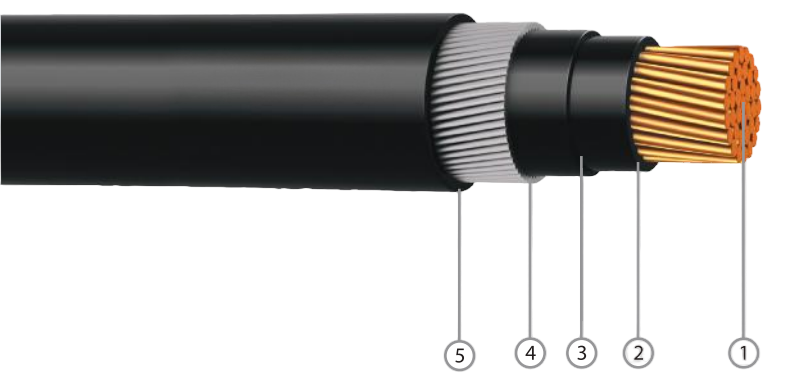

CONSTRUCTION

Conductor:

Plain   Annealed   CopperClass   2   Stranded

Insulation:

Circular   or

Polyvinyl  Type   TIi

Compacted

Chloride(PVC)Compound

Insulation      Colour:

Bedding:

Black

Polyvinyl

Type   TM1

Chloride(PVC)Compound

Bedding      Colour:

Black

Armour:

Aluminium

Wire     Armoured(AWA)

Outer     Sheath:

Outer   Sheath    Colour:

Polyvinyl

Type   TM1

Black

Chloride(PVC)Compound

ELECTRICAL    CHARACTERISTICS

Operating        Voltage,Uo/U:                0.6/1KV

Operating       Temperature:                  -15℃ to 70℃

Final   Short    Circuit   Temperature:    160℃   for      cable≤300mm²

INSTALLATION     REFERENCE

Min.Bending          Radius(mm):

Max.Pulling          Tension(N/mm²):

8×cable overalldiameter

50
