PAS BS 5308 Part 1 Type 1 MICA/XLPE/CAM/LSZH (Fire Resistant) Cable
Publicly Available Standard (PAS) BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry.
APPLICATION Publicly Available Standard (PAS) BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue, data or voice types and from a variety of transducers such as pressure, proximity or microphone. Part 1 Type 1 cables are generally designed for indoor use and in environments where mechanical protection is not required. Suitable for fire resistant installations. |
CHARACTERISTICS Voltage Rating Uo/U 300/500V Operating Temperature Fixed: -40ºC to +80ºC Flexed: 0ºC to +50ºC Minimum Bending Radius Fixed: 6 x overall diameter |

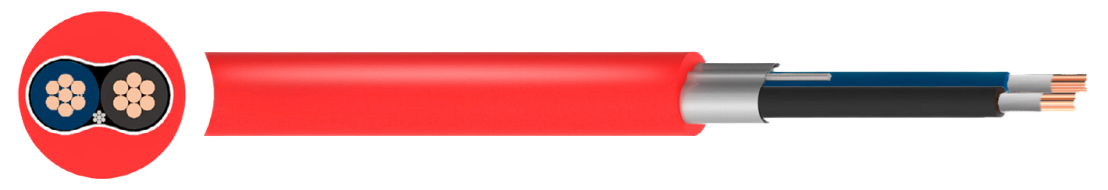

CONSTRUCTION
Conductor
0.5mm² - 0.75mm²: Class 5 flexible copper conductor 1mm² and above: Class 2 stranded copper conductor
Insulation
MICA Tape + XLPE (Cross-Linked Polyethylene)
Screen
Al/PET (Aluminium/Polyester Tape)
Drain Wire
Tinned copper
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
Red Black Blue
