PAS BS 5308 Part 1 Type 1 XLPE/ICAM/LSZH Cable
Publicly Available Standard (PAS) BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry.
APPLICATION Publicly Available Standard (PAS) BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue, data or voice type and from a variety of transducers such as pressure, proximity or microphone. Part 1 Type 1 cables are generally designed for indoor use and in environments where mechanical protection is not required. Collectively and individually screened pairs are available within the range where further signal security is required. |
CHARACTERISTICS Voltage Rating Uo/U 300/500V Temperature Rating Fixed: -40ºC to +80ºC Flexed: 0ºC to +50ºC Minimum Bending Radius Fixed: 12 x overall diameter |

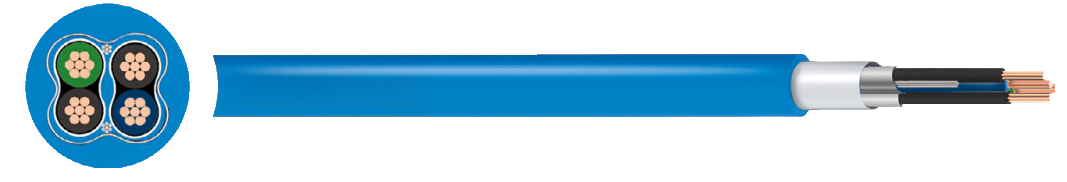

CONSTRUCTION
Conductor
0.5mm² - 0.75mm²: Class 5 flexible stranded copper
1mm² and above: Class 2 stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Individual and Collective Screen
Al/PET (Aluminium/Polyester Tape)
Drain Wire
Tinned copper
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
● Blue Black
