PAS BS 5308 Part 1 Type 2 Mica/XLPE/CAM/LSZH/ SWA/LSZH (Fire Resistant) Cable

Publicly Available Standard (PAS) BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry.

APPLICATION

Publicly Available Standard (PAS) BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue, data or voice types and from a variety of transducers such as pressure, proximity or microphone. Part 1 Type 2 cables are designed where a greater degree of mechanical protection is required or where there is direct burial at a suitable depth. Suitable for fire resistant installations.

CHARACTERISTICS

Voltage Rating Uo/U 300/500V

Operating Temperature

Fixed: -40ºC to +80ºC

Flexed: 0ºC to +50ºC

Minimum Bending Radius

Fixed: 12 x overall diameter

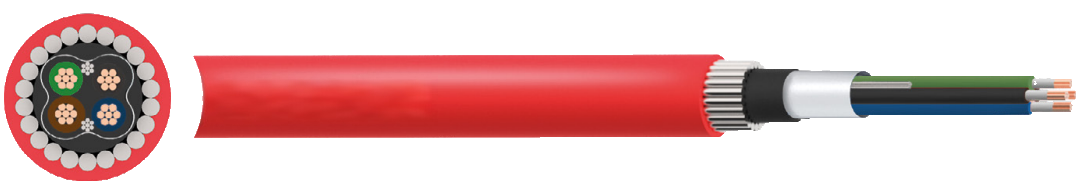

CONSTRUCTION

Conductor

0.5mm² - 0.75mm²: Class 5 flexible copper conductor 1mm² and above: Class 2 stranded copper conductor

Insulation

MICA Tape + XLPE (Cross-Linked Polyethylene)
