PAS BS 5308 Part 1 Type 2 XLPE/ICAM/LSZH/SWA/LSZH Cable
Publicly Available Standard (PAS) BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry.
APPLICATION Publicly Available Standard (PAS) BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue, data or voice types and from a variety of transducers such as pressure, proximity or microphone. Part 1 Type 2 cables are designed where a greater degree of mechanical protection is required or where there is direct burial at a suitable depth. Individually screened for enhanced signal security. |
CHARACTERISTICS Voltage Rating (Uo/U) 300/500V Temperature Rating Fixed: -40ºC to +80ºC Flexed: 0ºC to +50ºC Minimum Bending Radius Fixed: 12 x overall diameter |

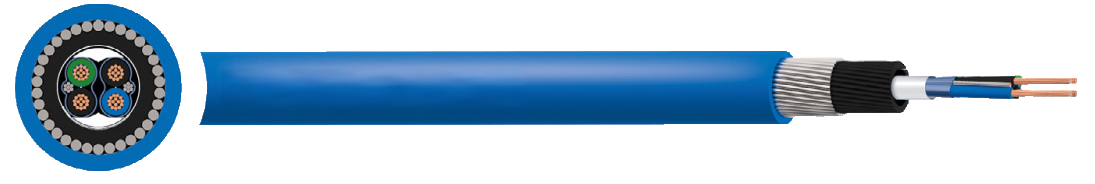

CONSTRUCTION
Conductor
0.5mm² - 0.75mm²: Class 5 flexible copper conductor 1mm² and above: Class 2 stranded copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Individual and Collective Screen
Al/PET (Aluminium/Polyester Tape)
Drain Wire
Tinned copper
Bedding
LSZH (Low Smoke Zero Halogen)
Armour
SWA (Galvanised Steel Wire Armour)
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
● Blue Black
