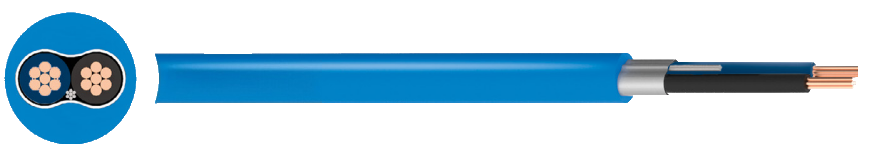

PAS/BS 5308 Part 1 Type 1 XLPE/CAM/LSZH Cable
PAS (publicly available standard) BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry.
APPLICATION PAS (publicly available standard) BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue, data or voice type and from a variety of transducers such as pressure, proximity or microphone. Part 1 Type 1 cables are generally designed for indoor use and in environments where mechanical protection is not required. Collectively and individually screened pairs are available within the range where further signal security is required. |
CHARACTERISTICS Voltage Rating Uo/U 300/500V Temperature Rating Fixed: -40ºC to +80ºC Flexed: 0ºC to +50ºC Minimum Bending Radius Fixed: 6 x overall diameter |
CONSTRUCTION
Conductor
0.5mm² - 0.75mm²: Class 5 flexible copper conductor 1mm² and above: Class 2 stranded copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Al/PET (Aluminium/Polyester Tape)
Drain Wire
Tinned copper
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
● Blue
Black
