PCC CU/PVC/PVC (MULTI-CORES) PVC Insulated,PVC Sheathed Cable,0.6/1kV,BS6346

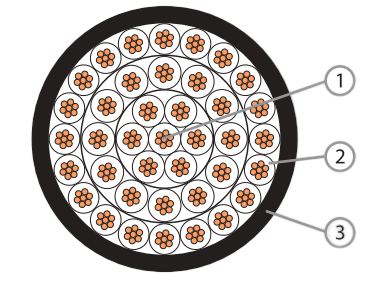

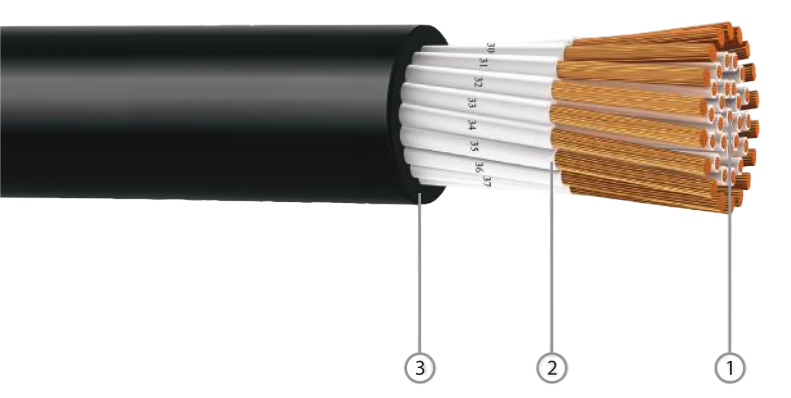

Component 1. Plain Annealed Copper Wire 2. PVC Compound 3.PVC Compound
ELECTRICAL CHARACTERISTICS
Operating Voltage,Uo/U: 0.6/1KV
Operating Temperature: -15℃ to 70℃
Final Short Circuit Temperature: 160℃
INSTALLATION REFERENCE Min.Bending Radius(mm): Max.Pulling Tension(N/mm²): | 8×cable overalldiameter 50 |
CONSTRUCTION
Conductor: Plain Annealed Copper,Class 2
Stranded Circular or Compacted
Insulation:Polyvinyl Chloride(PVC)Compound
Type TIi
Insulation Colour:2 Cores:
Brown,Blue or Red,Black
3 Cores:
Brown,Black,Grey or Red,Yellow,Blue
4 Cores:
Brown,Black,Grey,Blue or Red,Yellow, Blue,Black
5 Cores:
Brown,Black,Grey,Blue,Green/Yellow or Red,Yellow,Blue,Black,Green/Yellow or White with Black numbering or Others 7 Cores &above:
White with Black numbering or Others
Assembly:Cores cabled together and covered with Polyester(PET)Tape
Outer Sheath:Polyvinyl Chloride(PVC)Compound Type TM 1
Outer Sheath Colour: Black
