Photovoltaic Solar H1Z2Z2-K Cable
Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays.
$1.00
APPLICATION Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaicsystems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems. Impact tested - Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. Water resistant to AD8. |
CHARACTERISTICS Voltage Rating Uo/U AC: 1000/1000V DC: 1500/1500V Maximum Voltage (Umax) 1800V Test Voltage 6.5kV AC Temperature Rating Fixed: -40°C to +90°C Minimum Bending Radius 5 x overall diameter Maximum Conductor Temperature +120°C (for 20000h) |

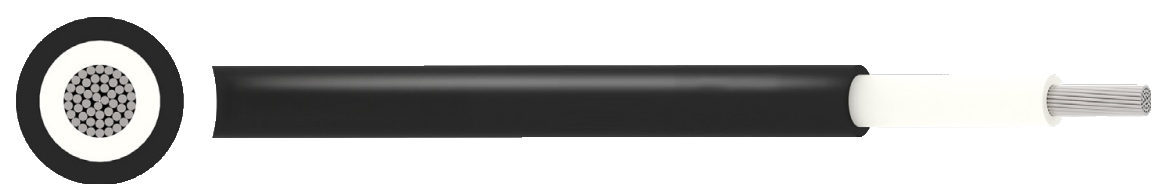

CONSTRUCTION
Conductor
Class 5 flexible tinned copper conductor
Insulation
Halogen-free cross-linked compound
Sheath
Halogen-free cross-linked, flame retardant compound
Sheath Colour
● Black
Other colours available on request
