1. Introduction

The Plano-Flex NGFLGOEU represents a pinnacle of engineering excellence in flexible flat cable technology, specifically designed to meet the demanding requirements of modern industrial festoon systems. This highly specialized festoon cable delivers exceptional performance in applications requiring continuous flexing movements while maintaining reliable power and control signal transmission.

Operating at a robust 300/500V (600V) voltage rating, this flexible flat control cable complies with stringent DIN VDE 0250-809 standards, ensuring both safety and performance reliability in critical industrial environments. The cable's unique flat profile design optimizes space utilization while providing superior mechanical properties that traditional round cables cannot match.

Industrial facilities worldwide have adopted the Plano-Flex NGFLGOEU for its proven track record in harsh operating conditions. The cable's designation itself tells a comprehensive story: the "N" indicates German DIN VDE standard compliance, "G" represents the integrated protective earth conductor, "F" signifies enhanced flexibility characteristics, "LGO" denotes the specialized rubber-insulated flat cable construction for mobile applications, and "EU" indicates the durable elastomer outer sheath designed for extreme environmental exposure.

2. Application Areas

The Plano-Flex NGFLGOEU excels in diverse industrial sectors where reliable power transmission and control signal integrity are paramount. Overhead cranes represent one of the primary applications, where the cable's flat design prevents twisting and tangling during horizontal and vertical movements across factory floors and construction sites.

Conveyor systems in manufacturing facilities, warehouses, and distribution centers benefit significantly from this cable's ability to withstand millions of flex cycles without degradation. The cable maintains consistent electrical properties even under continuous movement, making it ideal for automated sorting systems, baggage handling equipment, and production line conveyors.

Robotic tracks and automated guided vehicle (AGV) systems rely on the Plano-Flex NGFLGOEU for uninterrupted power supply during precise positioning operations. The cable's exceptional flexibility allows robots to perform complex movements while maintaining stable electrical connections for both power transmission and control signal communication.

Material handling equipment, including gantry cranes, bridge cranes, and portal cranes, utilize this flat festoon cable for cranes to ensure continuous operation during heavy lifting operations. The cable's robust construction withstands the mechanical stresses associated with industrial lifting equipment while providing reliable electrical performance.

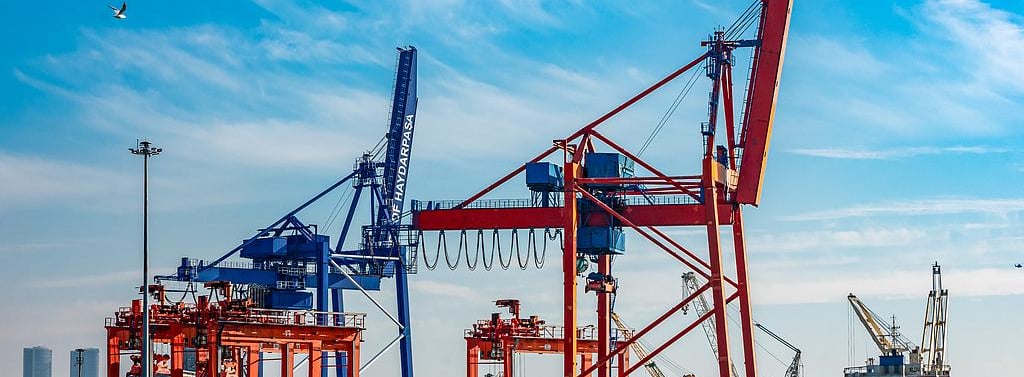

Port equipment and container handling systems represent another critical application area where the mobile festoon control cable demonstrates its versatility. Ship-to-shore cranes, rubber-tired gantry cranes, and rail-mounted gantry cranes depend on this cable for safe and efficient container movement operations in marine environments.

3. Design and Construction

3.1 Conductor

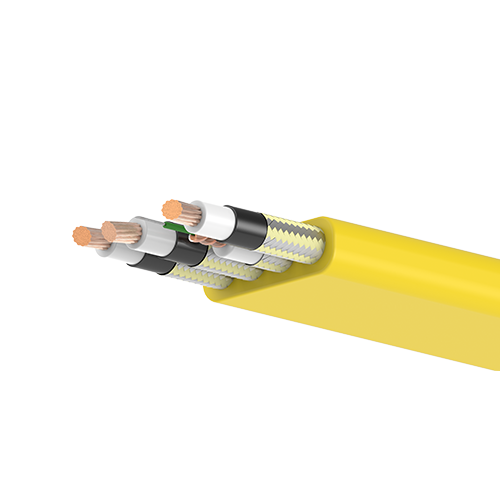

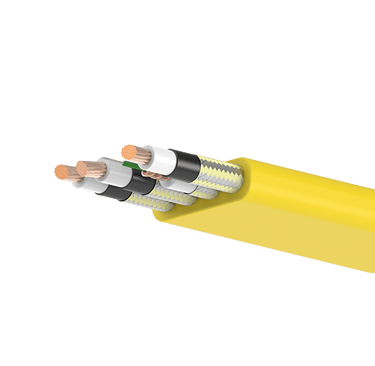

The heart of the Plano-Flex NGFLGOEU lies in its meticulously engineered conductor system, utilizing high-purity electrolytic copper that provides exceptional electrical conductivity and corrosion resistance. For conductor cross-sections up to 25 mm², the cable employs extra-fine stranded copper construction classified as Class 6 according to IEC 60228 standards, delivering maximum flexibility for demanding festoon applications.

Larger conductor sizes above 35 mm² utilize Class 5 stranding, which maintains excellent flexibility while providing the structural integrity necessary for higher current-carrying capacity. This graduated approach to conductor design ensures optimal performance across the entire range of available configurations.

The conductor stranding pattern follows a carefully engineered sequence that minimizes stress concentration during flexing cycles. Each individual copper strand undergoes precision drawing and annealing processes to achieve the ideal balance between conductivity and mechanical flexibility. This results in conductors capable of withstanding millions of flex cycles without wire breakage or electrical degradation.

3.2 Insulation & Shielding

The insulation system utilizes advanced EPR insulation (PROTOLON 3GI3 compound) manufactured in accordance with DIN VDE 0207-20 specifications. This high-performance elastomeric insulation provides exceptional dielectric strength while maintaining flexibility across a wide temperature range.

Optional tinned copper braid shielding offers electromagnetic interference (EMI) protection with coverage ratings between 60-80%, depending on application requirements. The shielding construction employs tinned copper strands woven in a precise pattern that maintains electrical continuity even during extreme flexing operations.

For applications requiring enhanced EMI protection, the shielded flat cable configuration includes a drain wire for simplified grounding connections. The shielding system effectively attenuates electromagnetic interference while allowing the cable to maintain its exceptional flexibility characteristics.

3.3 Sheath

The outer sheath utilizes premium chloroprene rubber (CR) compound type 5GM3, engineered specifically for demanding industrial environments. This CR sheathed cable provides exceptional resistance to flame propagation, UV radiation, ozone exposure, and mechanical abrasion.

The flame-retardant properties meet stringent international safety standards, ensuring personnel safety and equipment protection in industrial installations. The UV and ozone resistance characteristics enable reliable outdoor operation without degradation of mechanical or electrical properties over extended service life.

4. Electrical & Thermal Properties

The Plano-Flex NGFLGOEU operates at a rated voltage of 300/500V with peak voltage capability up to 600V, making it suitable for both power distribution and control signal applications. This 600V flat control cable undergoes rigorous electrical testing to ensure compliance with international safety standards.

Testing protocols include AC voltage tests at 2 kV for individual control cores and 2.5 kV for overall cable assembly, performed for five minutes to verify insulation integrity. These comprehensive tests ensure the VDE-certified flat cable meets the highest safety standards for industrial applications.

Thermal performance characteristics include a maximum continuous conductor temperature of 90°C during normal operation, with short-circuit capability up to 250°C for one second. This thermal rating enables the cable to handle both steady-state loads and emergency overload conditions without compromising safety or performance.

The cable's thermal design incorporates optimized conductor spacing and advanced insulation materials that facilitate heat dissipation while maintaining compact dimensions. This thermal management approach ensures stable electrical performance across the entire operating temperature range.

5. Mechanical & Flexibility Performance

Mechanical performance represents a critical design parameter for festoon cable applications, and the Plano-Flex NGFLGOEU delivers exceptional capabilities in this regard. The cable withstands tensile loads up to 15 N/mm², providing substantial margin for installation tensions and operational stresses.

Festoon travel speeds accommodate demanding industrial requirements, supporting speeds up to 180 m/min in motorized systems and 160 m/min in non-motorized applications. These high-speed capabilities enable the cable to support rapid material handling operations without mechanical stress or electrical degradation.

The minimum bending radius specification of 5× cable thickness ensures proper installation practices while maximizing system flexibility. This generous bending radius prevents conductor stress concentration and insulation damage during installation and operation.

Flat cable bending radius calculations must consider both static installation requirements and dynamic flexing applications. The cable's flat profile distributes bending stresses across a larger area compared to round cables, resulting in extended service life and enhanced reliability.

Flex life testing demonstrates the cable's ability to withstand millions of flex cycles under specified conditions, making it ideal for continuous-duty applications. The testing protocol simulates real-world operating conditions to validate long-term performance expectations.

6. Environmental & Chemical Resistance

Environmental resistance capabilities distinguish the Plano-Flex NGFLGOEU from standard industrial cables. The cable demonstrates exceptional oil resistance according to DIN VDE 0473-404 standards, enabling reliable operation in oil-contaminated industrial environments without sheath degradation.

UV resistance and ozone resistance characteristics ensure reliable outdoor operation without material degradation from solar radiation or atmospheric ozone exposure. These properties make the UV-resistant festoon cable suitable for both indoor and outdoor installations.

The operating temperature range accommodates diverse environmental conditions:

• Flexing applications: -35°C to +80°C

• Fixed installations: -50°C to +80°C

This wide temperature range enables the oilproof flat crane cable to operate reliably in extreme climates, from Arctic installations to tropical industrial environments. The cable maintains mechanical flexibility and electrical performance across this entire temperature spectrum.

Chemical resistance extends beyond oil to include resistance to common industrial chemicals, cleaning solvents, and atmospheric pollutants. This comprehensive chemical resistance ensures long service life in diverse industrial environments.

7. Available Sizes & Model Variants

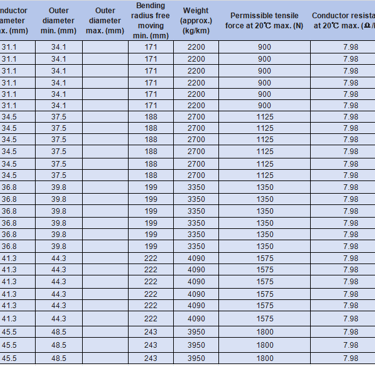

The Plano-Flex NGFLGOEU product line encompasses a comprehensive range of configurations to meet diverse application requirements. Common configurations include popular sizes from 3×1.5 mm² for light control applications to 7×2.5 mm² for higher power requirements.

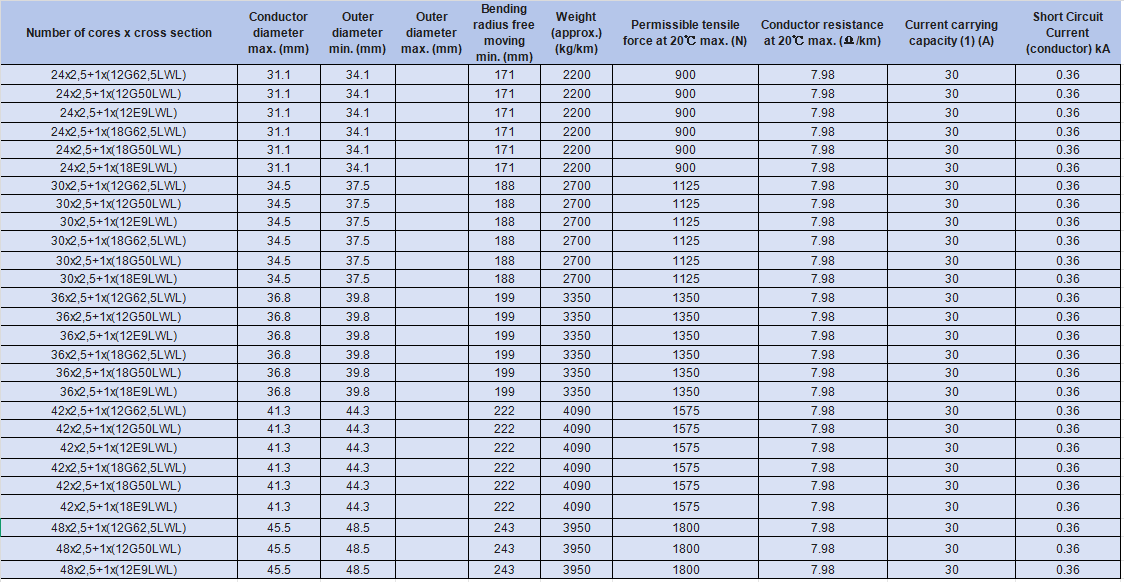

Extended configurations accommodate complex industrial systems, with options ranging from 24×2.5 mm² to 48×2.5 mm² plus integrated communication cables. These larger configurations provide comprehensive power and control solutions for sophisticated material handling systems.

Shielded (J) and unshielded (O) types offer flexibility in system design, allowing engineers to specify EMI protection based on specific application requirements. The Plano-Flex NGFLGOEU 4×1.5mm² represents a popular configuration for standard crane control applications.

Shielded festoon flat cable variants include tinned copper braid shielding with drain wire connections for simplified installation. The shielding provides effective EMI attenuation while maintaining the cable's exceptional flexibility characteristics.

Custom configurations accommodate specialized applications requiring unique conductor combinations, enhanced shielding, or modified sheath materials. These customization capabilities ensure optimal performance for specific industrial requirements.

8. Installation & Buying Guide

Proper cable selection requires careful consideration of multiple factors to ensure optimal system performance and longevity. Voltage class selection must account for both normal operating voltage and potential transient conditions that may occur during system operation.

Flexing requirements analysis should consider travel distance, flexing frequency, bending radius constraints, and environmental conditions. Systems with continuous high-speed operation require careful evaluation of flex life expectations and mechanical stress factors.

Environmental exposure assessment must evaluate temperature extremes, chemical exposure, UV radiation levels, and potential mechanical hazards. This evaluation ensures appropriate cable specification for long-term reliable operation.

Installation guidelines emphasize proper cable support systems, appropriate bending radius maintenance, and secure termination practices. The festoon cable installation guide should address both mechanical installation requirements and electrical connection procedures.

Recommended sources for procurement include Feichun Cables as the primary manufacturer, along with authorized distributors such as CSE Distributors and Prysmian for regional availability. When looking to buy Plano-Flex NGFLGOEU cable, specification verification ensures compatibility with system requirements.

Quality assurance programs at authorized suppliers include cable testing, certification verification, and technical support services. These programs provide confidence in cable performance and long-term reliability.

9. Conclusion

The Plano-Flex NGFLGOEU delivers exceptional performance for demanding festoon system applications through its combination of advanced materials, precision engineering, and rigorous quality control. This specialized cable provides certified safety compliance, extended service life, and comprehensive customization options to meet diverse industrial requirements.

Industrial facilities worldwide rely on this cable for critical material handling operations where downtime is not acceptable. The cable's proven track record in harsh industrial environments demonstrates its capability to deliver reliable performance under the most demanding conditions.

The combination of VDE certification, oil resistance, UV protection, and exceptional flexibility characteristics makes the Plano-Flex NGFLGOEU an ideal choice for modern industrial automation systems. Its robust construction ensures dependable operation while minimizing maintenance requirements and total cost of ownership.

Investment in Plano-Flex NGFLGOEU technology represents a commitment to operational excellence, safety compliance, and long-term reliability in industrial festoon applications. The cable's comprehensive performance capabilities and proven track record make it the preferred choice for demanding industrial environments requiring uncompromising quality and performance.
