Portable Arc-Welding Cable 600V
These cables are designed for use as flexible welding leads connecting the electrode holder to the welding machine in the secondary circuit of electric arc welding systems.

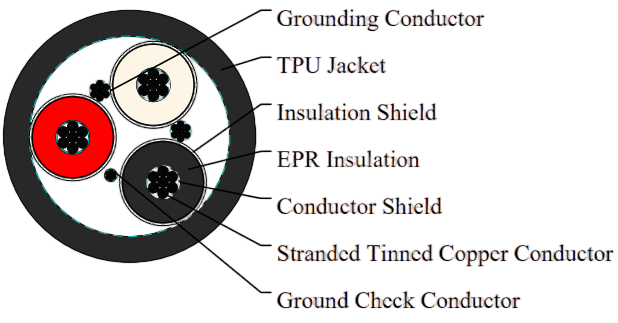

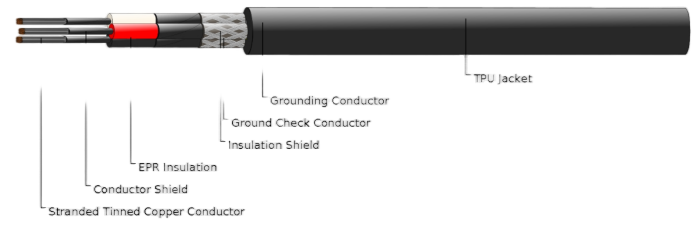

Construction
Conductors | Class K/M stranded annealed copper conductor. |
|---|---|
Jacket | Heavy-duty/medium-duty Ethylene Propylene Rubber (EPR). |
Options
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
Minimum Bending Radius | 6×OD |
|---|---|
Maximum Conductor Operating Temperature | +90℃ |
