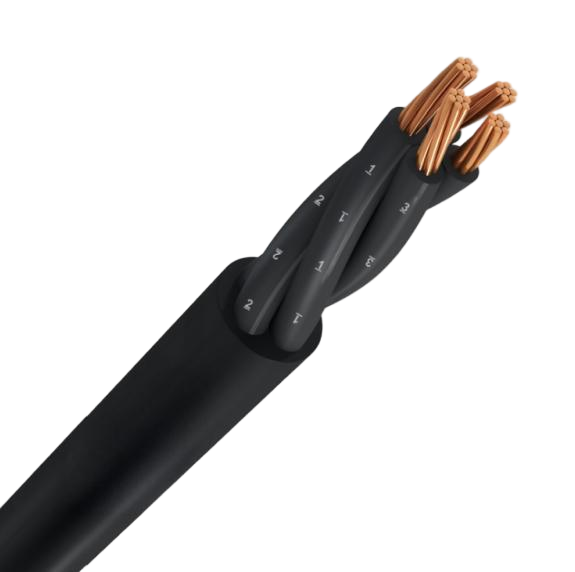

POWER CABLES Cu 90°C XHHW-2 600V PVC TC
Power cables with soft copper, insulation in XLPE and PVC jacket.
APPLICATION
XHHW-2 power cables are used in industrial facilities, for low voltage electrical energy distribution. Installation in dry or wet locations, in sumps, pipelines or direct burial, in places where there is no heavy traffic. Suitable for use in tray (TC) with external cover (jacket) resistant to UV rays (SR).

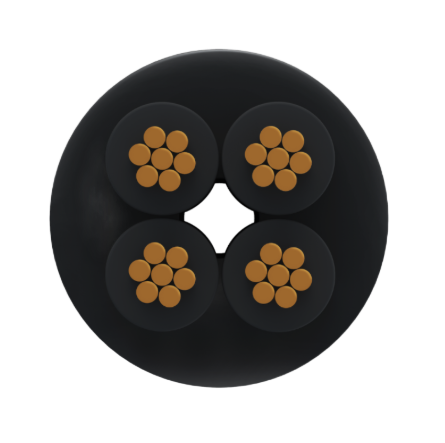

CONSTRUCTION
Conductor
Soft copper, concentric stranded class B.
Insulation
Individually insulated conductors with XLPE compound type XHHW-2.
Jacket
Polyvinyl Chloride PVC, flame retardant, resistant to abrasion, heat and humidity.
Operating Temperature
90 °C
Operating Voltage
600 V
