Powerchain Cable
It is applicable in standard drag chains without tensile load.
APPLICATION These highly-flexible data cables are suitable for continuous mobile use under extreme conditions. It is applicable in standard drag chains without tensile load. |
CHARACTERISTICS Voltage Rating Uo/U 300/500V Temperature Rating Fixed: -40ºC to +70ºC Installation: -5ºC to +70ºC Minimum Bending Radius Fixed: 5 x overall diameter Flexed: 10 x overall diameter |

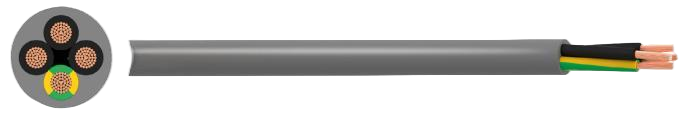

CONSTRUCTION
Conductor
Class 6 Fine Stranded Bare Copper
Insulation
PVC/PP (Polyvinyl Chloride / Polypropylene)
Outer Sheath
PVC (Polyvinyl Chloride)
Core Identification
Black numbered + Green/Yellow
Sheath Colour
Grey
