Powerchain CP Cable
The cable is halogen-free, flame retardant and resistant against most chemicals used in industrial environment.
APPLICATION Highly flexible control cable for the constantly moved equipment under extreme conditions indoor and outdoor combined with requirements to EMC. The cable is halogen-free, flame retardant and resistant against most chemicals used in industrial environment. |
CHARACTERISTICS Voltage Rating Uo/U 300/500V Temperature Rating Fixed: -50ºC to +80ºC Installation: -40ºC to +80ºC Minimum Bending Radius Fixed: 4 x overall diameter Flexed: 7.5 x overall diameter |

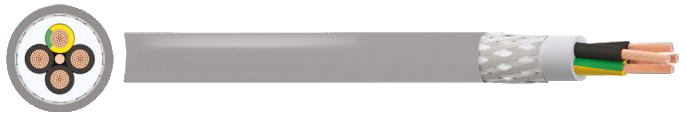

CONSTRUCTION
Conductor
Class 6 Fine Stranded Bare Copper
Insulation
TPE/PP (Thermoplastic Elastomer / Polypropylene)
Inner Sheath
PUR (Polyurethane)
Screen
TCWB (Tinned Copper Wire Braid)
Outer Sheath
PUR (Polyurethane)
Core Identification
Black numbered + Green/Yellow
Sheath Colour
Grey
