Powerchain CY Flexible Data Cable
High-Flex EMC-Screened Cable for Drag Chain Applications in Harsh Industrial Environments
$8.00
APPLICATION These highly-flexible data cables are suitable for continuous mobile use under extreme conditions with particular requirements on EMC. It is applicable in standard drag chains without tensile load. The cable is resistant against most chemicals used in industrial environment. |
CHARACTERISTICS Voltage Rating Uo/U 300/500V Temperature Rating Fixed: -40ºC to +70ºC Installation: -5ºC to +70ºC Minimum Bending Radius Fixed: 4 x overall diameter Flexed: 10 x overall diameter |

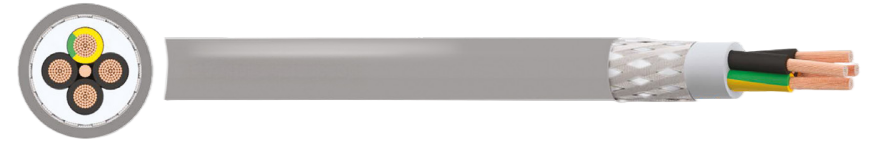

CONSTRUCTION
Conductor
Class 6 Fine Stranded Bare Copper
Insulation
PVC (Polyvinyl Chloride)
Inner Sheath
PVC (Polyvinyl Chloride)
Screen
TCWB (Tinned Copper Wire Braid)
Outer Sheath
PVC (Polyvinyl Chloride)
Core Identification
Black numbered + Green/Yellow
Sheath Colour
Grey
STANDARDS
VDE 0482-332-1-2
