Powerchain PUR Cable
Flexible control cable for permanent moved applications under heavy duty conditions.
APPLICATION Flexible control cable for permanent moved applications under heavy duty conditions. The cable is halogen-free, flame retardant and resistant against most chemicals used in industrial environment. |
CHARACTERISTICS Voltage Rating Uo/U 300/500V Temperature Rating Fixed: -50ºC to +80ºC Installation: -40ºC to +80ºC Minimum Bending Radius Fixed: 4 x overall diameter Flexed: 7.5 x overall diameter |

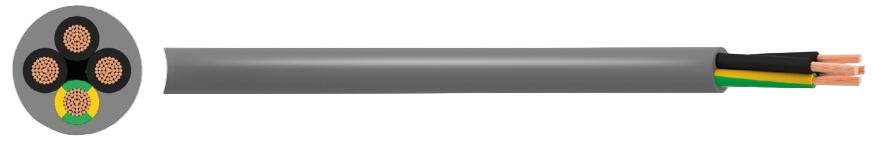

CONSTRUCTION
Conductor
Class 6 Fine Stranded Bare Copper
Insulation
TPE/PP (Thermoplastic Elastomer / Polypropylene)
Outer Sheath
PUR (Polyurethane)
Core Identification
Black numbered + Green/Yellow
Sheath Colour
Grey
