PPM CU/PVC/PVC (2 CORES-5 CORES) PVC Insulated,PVC Sheathed Cable,0.6/1kV,IEC

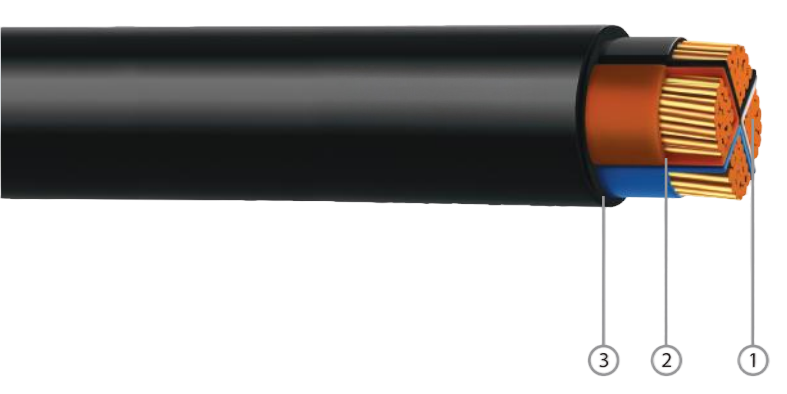

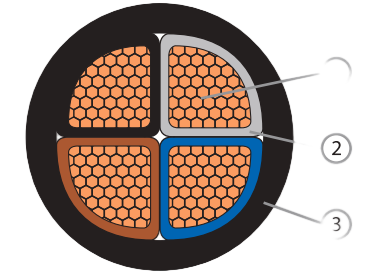

CONSTRUCTION

Conductor:

Plain   Annealed   Copper,Class   2   Stranded

Insulation:

Circular,Compacted     or     Sectored

Polyvinyl            Chloride(PVC)Compound Type  A

Insulation      Colour:

2  Cores:

Brown,Blue    or    Red,Black

3  Cores:

Brown,Black,Grey      or      Red,Yellow,Blue

4  Cores:

Brown,Black,Grey,Blue      or      Red,Yellow, Blue,Black

5  Cores:

Brown,Black,Grey,Blue,Green/Yelow            or Red,Yellow,Blue,Black,Green/Yellow            or

White   with    Black   numbering   or   Othes

 Assembly:

Cores   cabled   together  with   filler   and covered     with     Polyester(PET)Tape

ELECTRICAL    CHARACTERISTICS

Operating         VoltageUo/U:                0.6/1KV

Operating

Final   Short

Temperature:

Circuit   Temperature:

-15℃ to 70℃

160℃   for      cable≤300mm²

INSTALLATION

Min.Bending

REFERENCE

Radius(mm):

8xcable overalldiameter

Outer     Sheath:

Polyvinyl      Chloride      (PVC)Compound                      Max.Pulling      Tension(N/mm²):       50

Type ST 1

Outer   Sheath   Colour:

Black
