PPS CU/PVC/PVC (SINGLE CORE) PVC Insulated,PVC Sheathed Cable,0.6/1kV,IEC60502

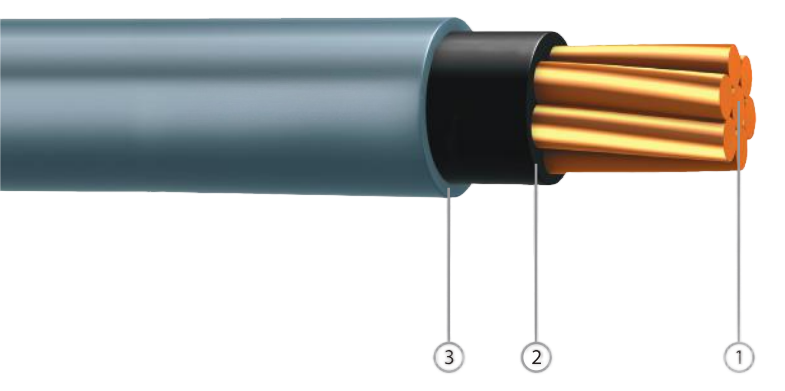

CONSTRUCTION

Conductor:

Insulation:

Insulation Colour:

Outer Sheath:

Outer Sheath Colour:

Plain Annealed Copper,Class 2   Stranded Circular or Compacted

Polyvinyl Chloride(PVC) Compound Type A

Red or Black

Polyvinyl Chloride(PVC) Compound  Type  ST  1

Grey

ELECTRICAL    CHARACTERISTICS

Operating VoltageUo/U:             0.6/1KV

Operating Temperature:               -15℃ to 70℃

Final Short Circuit Temperature:    160℃ for cable≤300mm² 140℃ for cable>300mm²

INSTALLATION     REFERENCE

Min.Bending Radius(mm):

Max.Pulling          Tension(N/mm²):

6xcable overalldiameter

50
