PROFIBUS 1 Pair 22 AWG
Cable
Application
These profibus cables are dedicated for fixed installation on board of ship, used as connection cables for digital signals up to 12MBd.
Standards
IEC 60332-1&2
IEC 60754-1/2
IEC 61034
IEC 60092

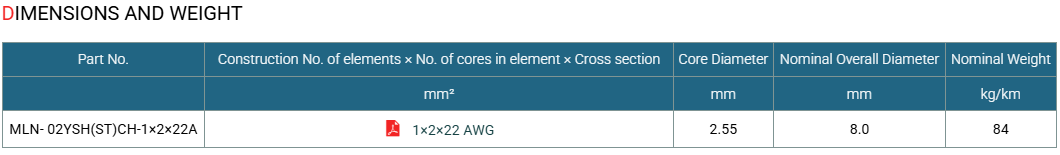

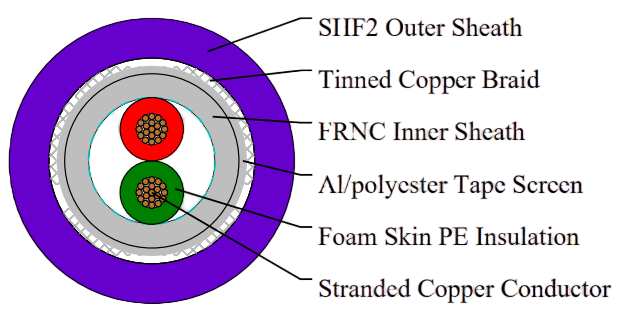

Construction
Conductors : Stranded bare copper 22 AWG.
Insulation : Foam skin PE.
Easy Strip : Thermoplastic copolymer (FRNC).
Overall Screen1 : Aluminium/polyester tape.
Overall Screen2 : Tinned copper braid.
Outer Sheath : SHF2.
Core Identification
Core 1 : Red
Core 2 : Green
Electrical Characteristics
Characteristic Impedance | Ω | 150 ± 15 |
|---|---|---|
Mutual Capacitance @1KHz | nF/km | 28.5 |
Insulation Resistance | 16000 | |
Attenuation @9.6kHz | dB/km | 2.5 |
Attenuation @38.4kHz | dB/km | 4 |
Attenuation @4kHz | dB/km | 22 |
Attenuation @16kHz | dB/km | 42 |
Mechanical and Thermal Properties
Bending Radius for Fixed Installations : 10×OD
Temperature Range : -25℃ ~ +80℃
