Profibus DP FC L2/FIP LSZH Cable
Profibus cable for Fast-Connect, installed indoors in fixed and occasional flexing applications.
$1.00
、
APPLICATION
Profibus cable for Fast-Connect, installed indoors in fixed and occasional flexing applications. A fieldbus standard that supports a wide variety of Profibus DP (DecentralizedPeripherals) applications in automated manufacturing.Depending on bit rates, segment lengths of up to 1,200m can be achieved.
CHARACTERISTICS
Maximum Operating Voltage
300V
Temperature Rating
Fixed: -40°C to +70°C
Flexing: -10°C to +50°C
Minimum Bending Radius
Fixed: 12 x overall diameter

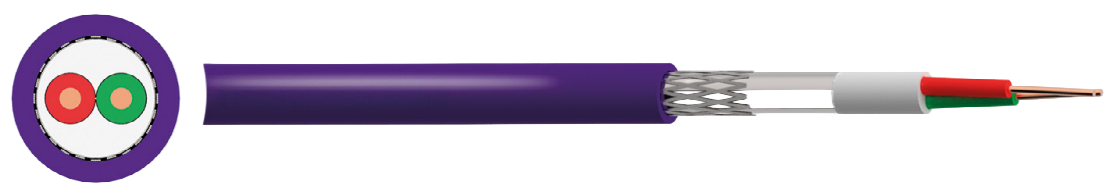

CONSTRUCTION
Conductor
Solid Bare Copper Wire - 22/1AWG
Insulation
Foam-Skin Polyethylene
Separator
PET (Polyester Tape)
Inner Sheath
LSZH (Low Smoke Zero Halogen)
Shield
Al/PET (Aluminium/Polyester Tape)
Braid
TCWB (Tinned Copper Wires Braid) 60% Coverage
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
● Green ● Red
Sheath Colour
● Violet
