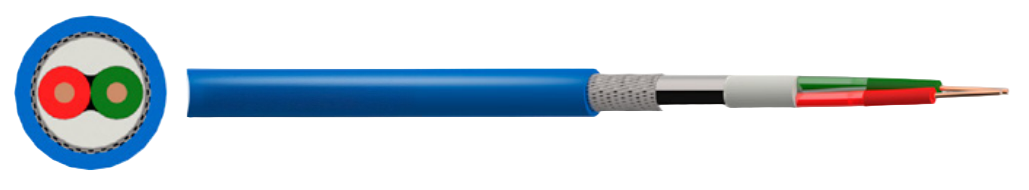

Profibus PA LSZH Cable
Profibus PA cable for industrial fieldbus systems particularly developed for process automation and instrumentation applications including connecting sensors and actuators in hazardous and intrinsically safe areas.
$5.00
CHARACTERISTICS
Maximum Operating Voltage
300V
Temperature Rating
Fixed: -30°C to +80°C
Minimum Bending Radius
Fixed: 10 x overall diameter
CONSTRUCTION
Conductor
Solid Bare Copper Wire (18/1AWG)
Insulation
Solid PE (Polyethylene)
Bedding
PET (Polyester Tape)
Filler
LSZH (Low Smoke Zero Halogen)
Shield
Al/PET (Aluminium/Polyester Tape)
Braid
TCWB (Tinned Copper Wire Braid) 60% Coverage
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
● Green ● Red
Sheath Colour
● Blue
