Introduction
Australia’s mining industry powers the nation and much of the world. From the vast open cut coal operations in Queensland’s Bowen Basin to the iron ore giants of the Pilbara in Western Australia, equipment operates around the clock in some of the harshest conditions on earth. Continuous movement, extreme UV exposure, dust, heat, and heavy mechanical stress place enormous demands on power cables.
Standard cables often fail prematurely under constant reeling and unreeling, leading to costly downtime. That’s where specialised flexible medium voltage reeling cables like the PROTOLON (M) R-(N)TSCGEWOEU LWL 6–35kV come into their own. Designed specifically for dynamic applications in opencast mining and bulk materials handling, this cable delivers the flexibility, durability, and smart connectivity Australian miners need to keep production moving safely and efficiently.
What Is the PROTOLON (M) R-(N)TSCGEWOEU LWL 6–35kV Cable?
This is a high-performance flexible medium voltage reeling cable rated from 6 kV to 35 kV. It is engineered for heavy-duty mobile equipment that requires constant reeling onto mono-spiral or cylindrical reels while maintaining reliable power transmission and data communication.
The “LWL” designation indicates integrated optical fibre elements, allowing simultaneous power delivery and high-speed data transmission for monitoring, automation, and control systems – critical for modern Australian smart mining operations.
Key Design Features and Performance
Exceptional Mechanical Strength The cable handles high dynamic loads with permanent tensile strength of 20 N/mm² static and 25 N/mm² dynamic. Torsional stress resistance reaches +/-100% per metre, making it ideal for equipment that twists and turns during operation.
Superior Flexibility Very finely stranded copper conductors (Class FS) provide outstanding bend performance. Minimum bending radii follow VDE 0298-3 guidelines – typically 6x outer diameter for fixed installation and 10x for flexible operation – allowing tight reeling without damage.
Thermal Resilience Conductors operate continuously at 90°C with short-circuit tolerance up to 250°C. It performs reliably across Australian temperature extremes, from freezing Pilbara nights to scorching daytime heat, with ambient ranges from -40°C fixed to +80°C flexible.
Robust Environmental Resistance
Flame retardant to international standards
Oil and fuel resistant
Ozone and UV resistant – vital for cables exposed for long periods in Australian sunlight
Seawater resistant where applicable near coastal or port operations
Integrated Optical Fibre Optical fibre tubes are laid around a central support element. This enables real-time data for vibration monitoring, temperature sensing, equipment diagnostics, and integration with autonomous systems – a growing requirement in Australian mines.
VDE Certified The cable meets stringent VDE standards including DIN VDE 0250-813 and related specifications, ensuring proven safety and performance for mining applications.
Why Australian Mines Need Specialised Reeling Cables
Open cut mining in Australia involves massive mobile plant: rope shovels, hydraulic excavators, bucket wheel excavators, mobile crushers, and long-distance conveyor systems with stacker-reclaimers. These machines move continuously, dragging or reeling kilometres of cable every shift.
Common failure modes with unsuitable cables include:
Sheath cracking from UV and ozone
Conductor fatigue from repeated bending
Torsional damage causing internal short circuits
Insulation breakdown leading to earth faults
The PROTOLON (M) design directly addresses these issues through specialised rubber compounds, optimised lay lengths, and robust outer sheathing.
Real-World Application Cases in Australian Conditions
Case 1: Queensland Coal Mine – Bucket Wheel Excavator A major Bowen Basin coal operation replaced standard MV cables on a large bucket wheel excavator operating 24/7. The previous cables lasted 9–12 months before frequent failures. After installing the 20/35 kV PROTOLON (M) LWL variant with optical fibre, the cable has now exceeded 30 months of service with zero unscheduled downtime related to the cable. The integrated fibre allows continuous monitoring of reel tension and temperature, enabling predictive maintenance.
Case 2: Pilbara Iron Ore – Mobile Crusher and Conveyor System In the dusty, high-UV environment of the Pilbara, a leading iron ore producer deployed 12/20 kV reeling cables on mobile crushers feeding overland conveyors. The high tensile strength and torsion resistance handled the frequent repositioning and high travel speeds. Optical fibre integration provided real-time data to the central control room, improving synchronisation and reducing overload incidents. Cable life more than doubled compared to previous solutions.
Case 3: New South Wales – Stacker Reclaimer in Port Operations At a major coal export terminal, stacker-reclaimers operate with long outreach booms requiring constant cable movement. The 6/10 kV LWL cable’s compact, lightweight design (significant weight reduction versus older rubber cables) reduced reel loading while the polyurethane-like performance of the sheath resisted abrasion from coal dust. UV stability prevented degradation despite constant outdoor exposure.
Case 4: Western Australian Gold Mine – Drill Rig and LHD Support Although primarily a low voltage application on drills, higher voltage feeders using this cable family supplied power to mobile substations. The flexibility and mechanical robustness allowed rapid relocation of equipment typical in underground-to-surface transition zones.
These cases highlight how the right cable choice directly translates to higher availability, lower total cost of ownership, and improved safety in Australian mining.
Cable Construction in Detail

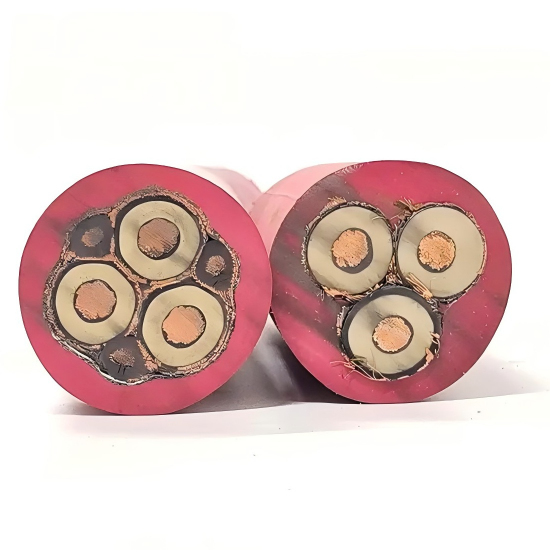

The cable features very finely stranded bare copper conductors for maximum flexibility. Each core has an inner semi-conductive layer, EPR insulation, and outer semi-conductive layer for even electrical stress distribution. Split earth conductors in the interstices improve balance and safety.
For the LWL version, optical fibre elements are carefully integrated without compromising mechanical performance. The inner sheath, armouring/reinforcement where required, and special polychloroprene (PCP) outer sheath provide the final layer of protection against the brutal Australian mine environment.
How to Select the Right Specification
When choosing a PROTOLON (M) R-(N)TSCGEWOEU LWL cable for your operation, consider:
Voltage rating – Match to your equipment (common Australian ratings include 6.6kV, 11kV, 22kV, and 33kV systems)
Conductor size – Based on current load and voltage drop over distance
Reel type and duty cycle – Mono-spiral vs cylindrical, travel speed up to 120 m/min
Optical fibre requirement – Number of fibres and configuration for your SCADA/monitoring needs
Environmental factors – Extra UV or oil resistance emphasis depending on site
Always work with a qualified cable engineer to ensure the bending radius, tensile load, and fleet angle on reels are correctly specified.
Reeling Performance Advantages
This cable supports high-speed reeling operations – up to 100 m/min rewinding and 120 m/min in reeling mode. The optimised design minimises internal stresses, extending service life significantly compared to standard flexible cables not purpose-built for continuous dynamic duty.
Comparison with Standard Mining Cables
While standard trailing cables may suffice for occasional movement, they quickly show their limitations in true reeling applications. The PROTOLON (M) series offers measurably better torsion resistance, tighter bending capability, superior UV stability, and the added benefit of integrated data transmission – all critical for Australian high-utilisation mines aiming for world-class reliability.
Maintenance Best Practices for Long Service Life
To maximise cable life in Australian conditions:
Conduct regular visual inspections for sheath abrasion or cuts
Monitor and maintain correct bending radii on reels
Ensure proper reel alignment and fleet angle
Avoid excessive tension or sharp directional changes
Clean dust and material buildup that can accelerate wear
Use the optical fibre monitoring data where available for early warning
Conclusion
In Australia’s demanding open cut mining sector, every component must contribute to safety, productivity, and cost efficiency. The PROTOLON (M) R-(N)TSCGEWOEU LWL 6–35kV flexible medium voltage reeling cable stands out as a premium solution engineered precisely for these challenges. Its combination of mechanical toughness, environmental resilience, electrical reliability, and smart optical fibre integration makes it an excellent choice for excavators, mobile crushers, stackers, reclaimers, and other heavy mobile equipment.
For mine operators and contractors looking to reduce downtime, extend asset life, and embrace data-driven operations, this cable delivers tangible performance advantages in real Australian conditions.
Expert Summary
The PROTOLON (M) R-(N)TSCGEWOEU LWL 6–35kV represents state-of-the-art medium voltage reeling cable technology for the mining industry. Its finely stranded conductors, specialised EPR insulation, robust outer sheath compounds, and integrated optical fibre elements provide an unmatched balance of flexibility, tensile and torsional strength, and environmental durability. VDE certification underpins its suitability for the most demanding dynamic applications. In Australian open cut operations, where equipment utilisation is exceptionally high and conditions extreme, selecting this cable can deliver significantly extended service intervals, reduced maintenance costs, improved safety, and better integration with modern automation systems. For any site running high-duty reeling applications, it is a high-value investment that pays back through reliability and uptime.
