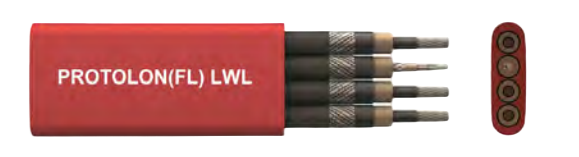

(FL)-LWL (N)TSFLCGEWOEU Medium voltage flat reeling cable with fiber-optics

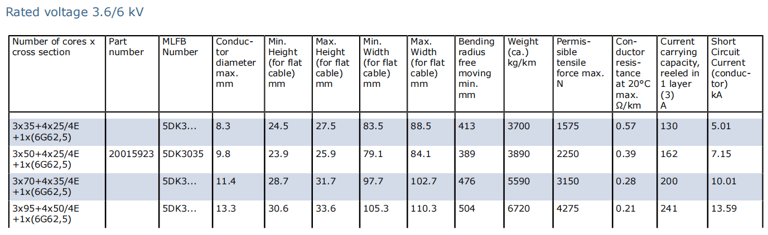

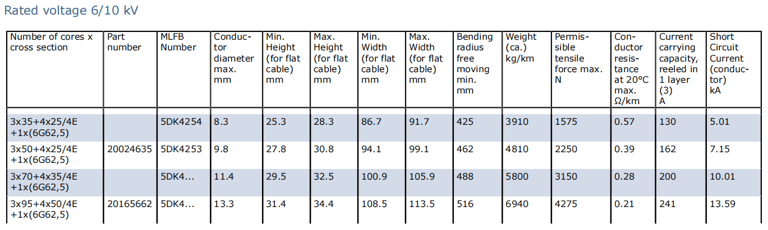

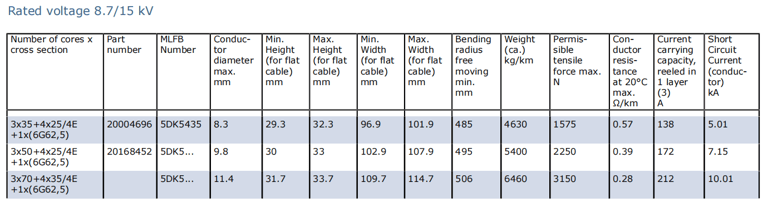

Application

Flexible medium voltage reeling cable for high mechanical stresses (e.g. dynamic tensile loads, multiple changes of direction within one plane, running over rollers). Mainly for mobile equipment, e.g. fast-moving container cranes, cranes, large mobile equipment and excavators.

Global data

Type designation                                                 (N)TSFLCGEWOEU

Standard                                                          Based on DIN VDE 0250-813

Chemical parameters

Resistance to oil                                                Acc. to DIN EN 60811-404 and DIN VDE 0473-811-404, paragraph 10

Weather resistance                                           Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture

Water resistance                                               Acc. to HD 2216

Thermal parameters

Max. permissible temperature at conductor        90 °C   Max. short circuit temperature of the conductor  250 °C

Ambient temperature for fixed installation          min -50 °C ; max +80 °C Ambient temperature in fully flexible operation   min -35 °C ; max +80 °C

Mechanical parameters

Max. tensile load on the conductor Torsional stress  15 N/mm²   Not allowed

Min. bending radius

Acc. to DIN VDE 0298, Part 3.

(Recommendation: applied cable diameter D = 1.5 x height of the flat cable)

Min. distance with S-type directional changes Travel speed

Additional tests

20 x D (cable diameter)

- Gantry (reeling operation): up to 120 m/min Reversed bending test, reeling test
